CKD PD3 — PD3 Series Pulse Jet Valve, Air Operated, genuine CKD product.
Overview
The CKD PD3 Series pulse jet valve is an air-operated valve that releases short bursts of compressed air to clean dust collector filter bags and cartridges. This listing includes diaphragm replacement parts that restore sealing and pulse performance. It is used in dust collection systems in industries such as cement, woodworking and metal processing.
Key Features
- Diaphragm parts restore pulse performance
- Designed for dust collector cleaning duty
- Matched to PD3 valve sizes
Specifications
| Part No. |
Thread Type |
Class |
Operation Type |
Part Name |
No. of Ports |
Pipe Port Size |
| PD3-20A-DIAPHRAGM |
Rc |
Part |
Pilot operated type |
Diaphragm (assembly) |
2 |
Rc3/4 |
| PD3-25A-DIAPHRAGM |
Rc |
Part |
Pilot operated type |
Diaphragm (assembly) |
2 |
Rc1 |
| PD3-40A-DIAPHRAGM |
Rc |
Part |
Pilot operated type |
Diaphragm (assembly) |
2 |
IN: Rc1 1/2, OUT: OD Φ48 length 52 |
| PD3-40A-N-D-KIT |
Rc |
Part |
Pilot operated type |
Diaphragm (assembly) |
2 |
IN: Rc1 1/2, OUT: OD Φ48 length 52 |
How to Order
Confirm the valve size, such as 20A or 25A, and the part type needed. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

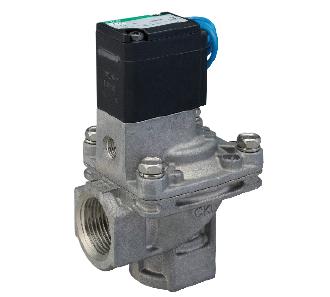

Product image is representative of the CKD series; appearance varies by size and model.
