CKD SAB1 — SAB Series Air Operated 2-Port Valve, genuine CKD product.
Overview

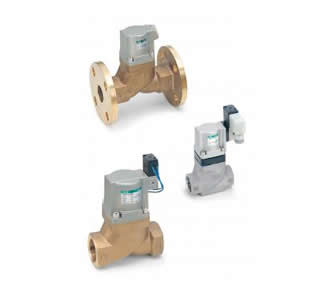

The SAB Series is a CKD air operated 2-port valve that uses compressed air rather than a solenoid to open and close the main flow path. It is suitable for controlling air, water and other fluids in larger lines where an external pilot signal is available. It is used in process plants and utility systems.
Key Features
- Air pilot operation, no coil at the valve
- Suits larger ports and higher flows
- Normally closed or open versions
- Robust body for process lines
Specifications
| Part No. |
Operating Pressure Range (MPa) |
Port Size (Rc) |
Fluid |
Fluid Temp. (℃) |
Fluid Viscosity (cSt) |
Mounting Orientation |
Withstand Pressure (MPa) |
Material (Body) |
Valve Seat Leakage (Pa·m3/s He) |
Orifice Diameter (Ømm) |
Orifice (mm) |
Switching Method |
Port Size |
Cv Value |
Connection Method |
Valve Seat Leakage (cm3/min) |
Material (Seal) |
Operating Air Pressure (MPa) |
Thread Type |
No. of Ports |
Options |
Ambient Temp. (℃) |
| SAB1A-15A-B |
|
|
Air, gas |
-10~90 (no freezing) |
|
|
2 (water pressure) |
Bronze |
|
15 |
|
|
1/2×1/8 (pilot port) |
- |
|
|
Fluororubber |
0.35～0.7 |
Rc |
2 |
None |
|
| SAB1S-15A-C |
|
|
Steam, water, air |
|
500 or less |
|
2 (water pressure) |
|
- |
15 |
|
|
1/2×1/8 (pilot port) |
5.5 |
|
300 or less (air pressure 0.02~1MPa) |
Polytetrafluoroethylene resin |
|
Rc |
2 |
|
-10～90 |
| SAB1S-20A-C |
0～1 |
1/8 (pilot port) |
Steam, water, air |
-10~184 (no freezing) |
|
|
2 (water pressure) |
|
- |
|
16 |
|
|
7 |
|
|
Polytetrafluoroethylene resin |
|
Rc |
2 |
|
-10～90 |
| SAB1S-25A-C |
0～1 |
1/8 (pilot port) |
Steam, water, air |
-10~184 (no freezing) |
|
Free |
|
|
|
20 |
20 |
NC (normally closed) type |
|
|
Rc |
300 or less (air pressure 0.02~1MPa) |
|
0.35～0.7 |
|
|
None |
|
How to Order
Specify port size, fluid, pressure range and normally closed or open action. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
