Description
CKD SCL2 — SCL Series Speed Controller, Inline Type, genuine CKD product.
Overview
The SCL Series inline speed controller from CKD regulates cylinder speed by restricting airflow in one direction. Installed in the tube line rather than on the cylinder, it is useful when the cylinder port is inaccessible. Push-in connections make installation quick. The adjustment needle is locked by a nut so the speed setting stays fixed during operation.
Key Features
- Inline installation between tubes
- Needle valve with check valve for free return
- Push-in connections on both ends
- Lock nut secures the adjustment
Specifications
| Part No. |
Material (Body) |
Tube Outer Diameter (Ø) |
Body Shape |
Control Direction |
Connection Method |
| SCL2-06-H66 |
Polybutylene terephthalate |
6 |
Straight |
Meter-in meter-out |
Tube OD |
| SCL2-08-H88 |
Polybutylene terephthalate |
8 |
Straight |
Meter-in meter-out |
Tube OD |
| SCL2-10-H88 |
Polybutylene terephthalate |
8 |
Straight |
Meter-in meter-out |
Tube OD |
How to Order
Confirm tube outside diameter and flow direction. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

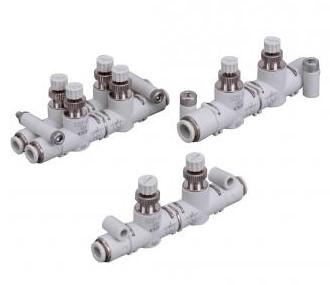

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
