Description

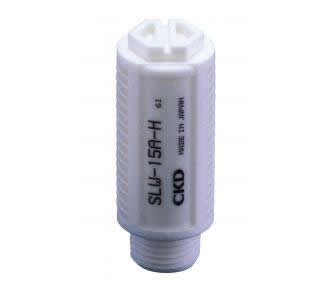

CKD SLW — SLW-*A-H Series Silencer, High Noise Reduction, Small Bore, genuine CKD product.
Overview
The CKD SLW-*A-H Series is a high noise reduction silencer in a small-bore design for compact valves. Fitted to exhaust ports, it disperses exhaust air through a porous sound-absorbing element, lowering noise without significantly slowing the actuator. It is used on solenoid valves, manifolds and compact machine designs where operator noise must be controlled.
Key Features
- High noise reduction in a small body
- Direct threaded connection to exhaust ports
- Low exhaust back pressure
Specifications
| Part No. |
Fluid Temp. (℃) |
Port |
Port Size |
Max. Operating Pressure (MPa) |
Cross-Sectional Area (㎟) |
Flow Rate (L/min(ANR)) |
Noise Reduction (dB) |
Fluid |
Operating Temp. Range (˚C) |
Class |
Proof Pressure (MPa) |
Applicable Cylinder Bore (Ømm) |
| SLW-10A-H |
5~60 (no freezing) |
R |
R3/8 |
1.0 |
30 |
2000 |
40 or more |
Compressed air |
-10~60℃ (no freezing) |
Made of resin |
1.5 |
50～100 |
| SLW-15A-H |
5~60 (no freezing) |
R |
R1/2 |
1.0 |
50 |
3250 |
40 or more |
Compressed air |
-10~60℃ (no freezing) |
Made of resin |
1.5 |
50～100 |
| SLW-8A-H |
5~60 (no freezing) |
R |
R1/4 |
1.0 |
15 |
1000 |
40 or more |
Compressed air |
-10~60℃ (no freezing) |
Made of resin |
1.5 |
32～80 |
How to Order
Select the thread size to match the valve exhaust port. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
