Description
CKD SLW — SLW-*L Series Silencer, High Flow, genuine CKD product.
Overview
The CKD SLW L series is a high-flow silencer that reduces exhaust noise from valves and cylinders while maintaining large exhaust capacity. Sintered or porous elements diffuse airflow to cut noise. It is used on valve exhaust ports of high-flow pneumatic systems. Lower noise also improves the working environment around machines.
Key Features
- High flow capacity with low back pressure
- Reduces exhaust noise
- Threaded connection to exhaust ports
- Durable sound-absorbing element
Specifications
| Part No. |
Noise Reduction (dB) |
Cross-Sectional Area (㎟) |
Operating Temp. Range (˚C) |
Max. Operating Pressure (MPa) |
Fluid |
Class |
Port Size |
Proof Pressure (MPa) |
Flow Rate (L/min(ANR)) |
Fluid Temp. (℃) |
Port |
Applicable Cylinder Bore (Ømm) |
Mass (g) |
| SLW-10L |
30 or more |
60 |
-10~60℃ (no freezing) |
1.0 |
Compressed air |
Made of resin |
R3/8 |
1.5 |
4000 |
5~60 (no freezing) |
R |
50～100 |
|
| SLW-8L |
30 or more |
|
-10~60℃ (no freezing) |
1.0 |
Compressed air |
Made of resin |
R1/4 |
1.5 |
2000 |
5~60 (no freezing) |
R |
32～80 |
15 |
How to Order
Check the port thread size and required exhaust flow. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

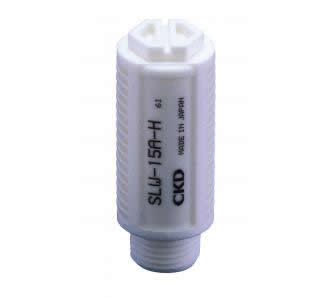

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
