Description
CKD SPK11 — SPK Series Pilot Operated 2-Port Solenoid Valve for Steam, genuine CKD product.
Overview
The CKD SPK Series is a pilot-operated 2-port solenoid valve designed for steam service. The pilot uses line pressure to open the main valve, allowing large flow from a compact body. It is used for steam supply control in heating equipment, sterilizers, cleaning machines and process plants.
Key Features
- Designed for steam temperatures and pressures
- Pilot operation for large flow paths
- Threaded ports for steam piping
Specifications
| Part No. |
Operation Type |
Fluid |
Ambient Temp. (℃) |
Coil Housing |
Orifice Diameter (Ømm) |
Pipe Port Size |
Max. Operating Pressure (MPa) |
Rated Voltage (V) |
Material (Body) |
No. of Ports |
Fluid Temp. (℃) |
Thread Type |
| SPK11-15A-C4A-AC200V |
Pilot operated type |
Steam |
-10～60 |
Lead wire |
16 |
1/2 |
1.0 |
AC200 |
Bronze |
2 |
5～180 |
Rc |
| SPK11-20A-C4A-AC200V |
Pilot operated type |
Steam |
-10～60 |
Lead wire |
23 |
3/4 |
1.0 |
AC200 |
Bronze |
2 |
5～180 |
Rc |
| SPK11-25A-C4A-AC100V |
Pilot operated type |
Steam |
-10～60 |
Lead wire |
28 |
1 |
1.0 |
AC100 |
Bronze |
2 |
5～180 |
Rc |
| SPK11-25A-C4A-AC200V |
Pilot operated type |
Steam |
-10～60 |
Lead wire |
28 |
1 |
1.0 |
AC200 |
Bronze |
2 |
5～180 |
Rc |
How to Order
Confirm port size, steam pressure range and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

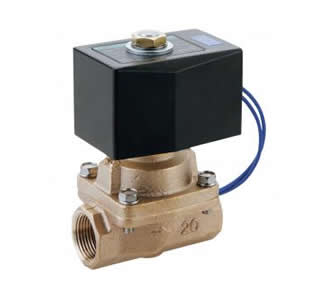

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
