Description
CKD STR2 — STR2 Series Super Twin Rod Cylinder, genuine CKD product.
Overview
The CKD STR2 Series super twin rod cylinder has two parallel piston rods, giving non-rotating motion and better resistance to lateral loads than a single-rod cylinder. It suits guiding, pushing and lifting tasks where a separate guide would otherwise be needed. Applications include assembly, packaging and transfer equipment.
Key Features
- Twin rods provide anti-rotation function
- Improved resistance to side loads
- Compact body for direct mounting
- Switch mounting options
Specifications
| Part No. |
Stroke (mm) |
Operation Type |
Class |
Tube Inner Diameter (Ømm) |
| STR2-20K |
|
Double acting type |
Part |
20 |
| STR2-M-16-30 |
30 |
Double acting, standard type |
|
16 |
| STR2-M-16-30-F |
30 |
Double acting, standard type |
|
16 |
| STR2-M-20-80 |
80 |
Double acting, standard type |
|
20 |
| STR2-M-20-80-F |
80 |
Double acting, standard type |
|
20 |
How to Order
Select bore, stroke, mounting and switch requirements. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

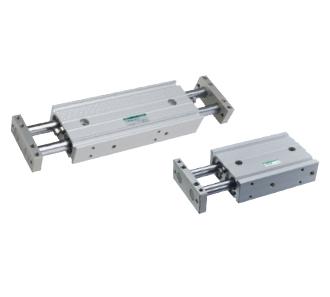

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
