CKD GWJL — New Joint Mini Type, Elbow, genuine CKD product.
Overview
This CKD New Joint mini elbow is a compact push-in fitting that turns tubing 90 degrees at small ports. It allows tight routing in small pneumatic devices. Push-in connection simplifies installation and maintenance. Mini fittings are popular on compact valves, small cylinders and vacuum pads where space is very limited.
Key Features
- Compact elbow for small ports
- Push-in tube connection
- Rotatable body for routing
- Small thread sizes
Specifications
| Part No. |
Fluid |
Port Size |
Mass (g) |
Shape |
Material (Threaded Part) |
Thread Type |
Material (Packing) |
Max. Operating Pressure (MPa) |
Fluid Temp. (℃) |
Applicable Pipe O.D. (Ømm) |
Material (Body) |
| GWJL4-M3 |
Compressed air |
M3 |
4.0 |
Elbow |
Brass |
M |
Nitrile rubber |
1 |
-10~60 (no freezing) |
4 |
Polybutylene terephthalate |
| GWJL6-M5 |
Compressed air |
M5 |
7.0 |
Elbow |
Brass |
M |
Nitrile rubber |
1 |
-10~60 (no freezing) |
6 |
Polybutylene terephthalate |
How to Order
Specify tube outside diameter and port thread size. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

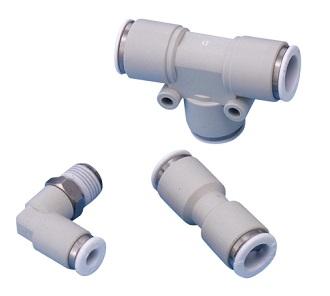

Product image is representative of the CKD series; appearance varies by size and model.
