Description
CKD 4KB11 — 4KA, genuine CKD product.
Overview
The CKD 4KA Series is a pilot operated 5-port solenoid valve used to drive double-acting cylinders in general automation. It can be mounted individually or on manifolds, with a range of electrical connection styles. Compact dimensions and good flow make it a common choice for machine builders.
Key Features
- Individual or manifold mounting options
- Multiple electrical connection styles
- Manual override for commissioning
- AC or DC coil variants
Specifications
| Part No. |
No. of Ports |
Rated Voltage (V) |
Max. Operating Pressure (MPa) |
Starting Current (A) |
Thread Type |
Min. Operating Pressure (MPa) |
Temperature Rise |
Port Size |
Voltage (V) |
Response Time |
Power Consumption (W) |
Holding Current (A) |
Type |
Heat Resistance Class |
Fluid Temp. (℃) |
Fluid |
| 4KB110-06-D3-DC24V |
5 |
DC24 |
|
|
Rc |
|
|
Rc1/8 |
|
|
|
|
|
|
|
Compressed air |
| 4KB119-00-AC100V |
5 |
|
0.7 |
0.056/0.044 |
|
0.15 |
43℃ |
|
AC100(50/60Hz) |
30ms or less |
1.8 |
1.4 (with lamp 1.8 |
1.5) |
0.028/0.022 |
Solenoid valve single unit for manifold |
B (molded coil) |
| 4KB119-00-AC200V |
5 |
|
0.7 |
|
|
0.15 |
43℃ |
|
AC200(50/60Hz) |
30ms or less |
1.8 |
1.4 (with lamp 1.8 |
1.5) |
0.014/0.011 |
Solenoid valve single unit for manifold |
B (molded coil) |
| 4KB119-00-C2-DC24V |
5 |
|
0.7 |
|
|
0.15 |
43℃ |
|
DC24 |
30ms or less |
1.8 (with lamp 2.0) |
0.075 |
Solenoid valve single unit for manifold |
B (molded coil) |
5～50 |
Compressed air |
| 4KB119-00-DC24V |
5 |
|
0.7 |
|
|
0.15 |
43℃ |
|
DC24 |
30ms or less |
1.8 (with lamp 2.0) |
0.075 |
Solenoid valve single unit for manifold |
B (molded coil) |
5～50 |
Compressed air |
How to Order
Specify valve size, port size, coil voltage, wiring option and number of positions. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

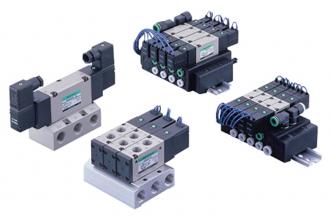

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
