CKD 4GA — Pilot Operated 5-Port Pneumatic Valve, Direct Piping 4G, genuine CKD product.
Overview
The CKD 4G Series is a pilot operated 5-port solenoid valve with direct piping ports. Compact and lightweight, it switches compressed air to double-acting cylinders and can be mounted individually or on manifolds. It is used widely in automated assembly, packaging and material handling. Its slim width keeps manifolds compact.
Key Features
- Direct piping with push-in or threaded ports
- Compact, lightweight body
- Individual or manifold mounting
- Multiple wiring and coil options
Specifications
| Part No. |
Fluid Temp. (℃) |
No. of Ports |
Vibration Resistance (m/s2) |
Enclosure Protection |
Port Size |
Operating Pressure (MPa) |
Withstand Pressure (MPa) |
Pilot Exhaust Method |
Shock (Durability) (m/s2) |
Type |
Options |
Switching Position Type |
Atmosphere |
Rated Voltage (V) |
Fluid |
Ambient Temp. (℃) |
Model No. |
Wire Connection Method |
Valve Specification |
| 4GA119R-C4-A2NH-3 |
|
5 |
50 or less |
|
Φ4 one-touch fitting |
|
1.05 |
Main valve / pilot valve common exhaust type |
|
|
Non-locking / locking dual manual device |
2-position single |
|
DC24 |
Compressed air |
-5~55 (no freezing) |
|
A-type connector |
|
| 4GA119R-C4-E2H-3 |
5～55 |
5 |
|
|
Φ4 one-touch fitting |
0.2～0.7 |
1.05 |
Main valve / pilot valve common exhaust type |
300 or less |
Single valve direct piping (for base mounting) |
With exhaust malfunction prevention valve |
|
Not usable in corrosive gas atmosphere |
|
|
|
4GA1 |
|
|
| 4GA210R-C6-3 |
|
5 |
50 or less |
Dustproof |
|
0.2～0.7 |
1.05 |
|
300 or less |
|
|
2-position single |
Not usable in corrosive gas atmosphere |
DC24 |
Compressed air |
-5~55 (no freezing) |
4GA2 |
|
|
| 4GA219R-C6-E0-3 |
5～55 |
5 |
50 or less |
Dustproof |
|
|
|
Main valve / pilot valve common exhaust type |
300 or less |
Single valve direct piping (for base mounting) |
Non-locking / locking dual manual device |
|
Not usable in corrosive gas atmosphere |
|
Compressed air |
|
4GA2 |
E-type connector (top/side direction shared) |
|
| 4GA219R-C6-E2-1 |
5～55 |
|
50 or less |
|
Φ6 one-touch fitting |
|
1.05 |
Main valve / pilot valve common exhaust type |
300 or less |
|
Non-locking / locking dual manual device |
2-position single |
|
|
Compressed air |
|
4GA2 |
E-type connector (top/side direction shared), with surge killer and lamp |
Pilot operated soft spool valve |
How to Order
Specify port size, number of positions, coil voltage and wiring type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

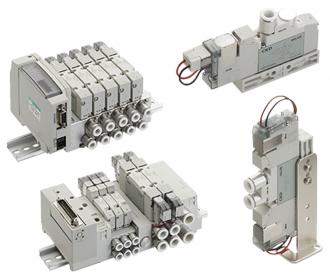

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
