Description
CKD AF2-05P-FLA09029 — Medium Main Line Filter Element Kit, genuine CKD product.
Overview
This element kit is for medium main line filters from CKD, used to remove particulates and moisture from compressed air at the main supply. Replacing elements at the recommended interval keeps air clean and minimizes pressure drop across the system. Keeping a kit in stock shortens planned maintenance downtime.
Key Features
- Replacement element for medium main line filters
- Supports high-flow main supply filtration
- Restores performance and lowers pressure drop
- Kit format simplifies maintenance
Specifications
| Part No. |
Drain Port Size |
Compatible Part No. |
Fluid |
Initial Pressure Drop (MPa) |
Drain Discharge |
Steady-State Pressure Drop (MPa) |
Class |
Withstand Pressure (MPa) |
Compatible Compressor |
Port Size (Rc) |
Mass (kg) |
Set Contents |
| AF2-05P-FLA09029 |
1/8 |
AF2-05P25A |
Compressed air |
0.0055 |
Built-in (NO type: discharges when unpressurized) |
0.0125 |
Part (element kit) |
1.5 |
15kW～120kW |
1 |
2.2 |
Element: 1 pc, element O-ring: 2 pcs, bowl O-ring: 1 pc |
How to Order
Confirm the filter model and filtration grade. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

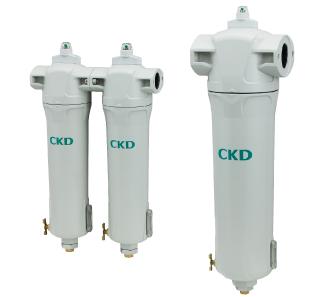

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
