Description
CKD SCA2-00-40B-50 — Selex Cylinder SCA2 Series (SCA2-00-), genuine CKD product.
Overview
The CKD SCA2 Series Selex cylinder is a standard tie-rod pneumatic cylinder used for general purpose linear motion. Compressed air moves a piston to extend and retract the rod, and cushions decelerate the stroke ends. It is widely applied in machinery for pushing, lifting and clamping.
Key Features
- Tie-rod construction for durability
- Adjustable cushioning at stroke ends
- Many mounting styles available
- Wide range of bore sizes and strokes
Specifications
| Part No. |
Max. Operating Pressure (MPa) |
Magnet |
Cushion |
Mass (kg) |
Effective Length (mm) |
Stroke (mm) |
Port Size |
Withstand Pressure (MPa) |
Fluid |
Lubrication |
Ambient Temp. (℃) |
Min. Operating Pressure (MPa) |
| SCA2-00-40B-50 |
1.0 |
(Cylinder switch detection) yes |
With air cushion on both sides |
1 |
(Air cushion) 14.6 |
50 |
Rc1/4 |
1.6 |
Compressed air |
Not required (when lubricating, use turbine oil class 1 ISO VG32) |
-10~60 (no freezing) |
0.05 |
How to Order
Specify bore size, stroke, mounting style and cushion or switch options. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

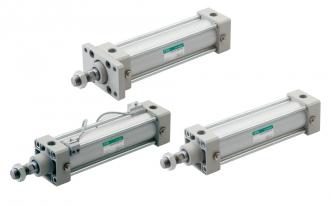

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
