Description
CKD FCS500-H6H6 — Inline Clean Filter FCS500 Series, Resin, genuine CKD product.
Overview
The CKD FCS500 inline clean filter has a resin body and is installed directly in tubing to remove fine particles from compressed air or gases just before the point of use. It is suited to clean applications in electronics, medical and precision equipment. It is often placed just before nozzles, sensors or pneumatic instruments that need clean air.
Key Features
- Inline mounting directly in tubing
- Resin body for lightweight installation
- Removes fine particles near point of use
- Push-in tube connections
Specifications
| Part No. |
Differential Pressure Resistance (MPa) |
Withstand Pressure (MPa) |
Operating Pressure (MPa) |
Mass (g) |
Cleaning |
Pipe Port Size |
Filtration Rating (㎛) |
Material (Case) |
Material (Element) |
Characteristics |
Flow Capacity (L/min[ANR]) |
Ambient and Fluid Temp. (℃) |
| FCS500-H6H6 |
0.5 (0.2 when fluid/ambient temperature is 45~50℃) |
1.5 |
-0.095～0.99 |
45 |
Degreased and cleaned |
(IN side) one-touch fitting Φ6, (OUT side) one-touch fitting Φ6 |
0.01 (removal efficiency 99.99%) |
Transparent polyamide |
Polypropylene + urethane |
(Assembly, inspection, packaging) integrated production in clean room |
50 |
5～50 |
How to Order
Confirm tube diameter, filtration rating and flow requirement. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

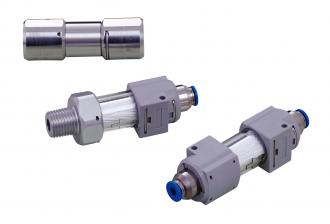

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
