Description
CKD SW-M0H — Cylinder Switch M Series, Reed 2-Wire, genuine CKD product.
Overview
The CKD M Series reed 2-wire cylinder switch detects the position of a magnet-equipped cylinder piston. When the piston magnet passes, the reed contact closes and sends a signal to a PLC or relay. It is used for end-of-stroke confirmation in pneumatic automation. Its slim housing fits into the switch rail of compatible cylinders.
Key Features
- Reed contact actuated by piston magnet
- Simple 2-wire connection
- Indicator lamp for status
- Compact for mounting on cylinder rails
Specifications
| Part No. |
Enclosure Protection |
Lead Wire (m) |
Type |
Internal Voltage Drop (V) |
Wiring Method |
View |
Leakage Current (mA) |
Ambient Temp. (℃) |
Indicator Lamp |
Lead Wire Exit Direction |
| SW-M0H |
IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant |
1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) |
Contact type |
3 or less |
2-wire type |
Single-color indicator type |
0 |
-10～+60 |
Red LED (lights when ON) |
Straight type |
How to Order
Confirm cylinder compatibility, voltage, lead wire length and connection type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

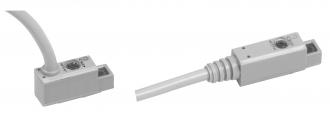

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
