Description
CKD SW-R0 — Cylinder Switch R Series, Reed 2-Wire, genuine CKD product.
Overview
The CKD R series reed switch is a 2-wire cylinder switch that detects the magnet in a cylinder piston. It provides a signal to controllers to confirm cylinder position. It is used with switch-ready cylinders on automation equipment. Reed switches are simple, economical sensors that require no separate power circuit in 2-wire form.
Key Features
- Reed contact for magnetic piston detection
- 2-wire connection
- Compact size for cylinder grooves
- Indicator lamp on many models
Specifications
| Part No. |
Lead Wire Exit Direction |
Leakage Current (mA) |
Compatible Cylinder |
View |
Enclosure Protection |
Lead Wire (m) |
Type |
Ambient Temp. (℃) |
Internal Voltage Drop (V) |
Indicator Lamp |
Wiring Method |
| SW-R0 |
Straight type |
0 |
GLC、HCA、MFC、SHC |
Single-color indicator type |
IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant |
1 (oil-resistant vinyl cabtire cord 2-core 0.3mm2) |
Contact type |
-10～+60 |
3.0 or less |
Red LED (lights when ON) |
2-wire type |
How to Order
Check compatible cylinder type, voltage and lead wire length. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

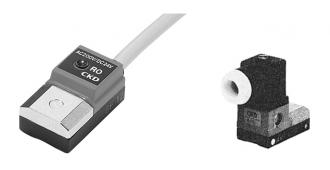

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
