Description

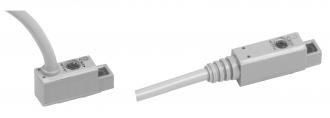

CKD SW-T2 — Cylinder Switch T Series, Solid State 2-Wire, genuine CKD product.
Overview
The CKD T Series cylinder switch is a solid-state 2-wire sensor mounted on a pneumatic cylinder to detect piston position via a magnet. It provides a signal to a PLC or controller when the piston reaches a set point. Solid-state switches offer long life and fast response compared with reed types.
Key Features
- Solid-state sensing with no moving contacts
- 2-wire connection simplifies wiring
- LED indicator for switching status
- Mounts on compatible cylinder grooves
Specifications
| Part No. |
Wiring Method |
Lead Wire Exit Direction |
Indicator Lamp |
Internal Voltage Drop (V) |
Lead Wire (m) |
View |
Load Current (mA) |
Ambient Temp. (℃) |
Enclosure Protection |
Leakage Current (mA) |
Type |
| SW-T2H |
2-wire type |
Straight type |
Red LED (lights when ON) |
4 or less |
1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) |
Single-color indicator type |
5~20 (load voltage: DC10~30V) |
-10～+60 |
IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant |
1 or less |
Contactless |
| SW-T2H3 |
2-wire type |
Straight type |
Red LED (lights when ON) |
4 or less |
3 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) |
Single-color indicator type |
5~20 (load voltage: DC10~30V) |
-10～+60 |
IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant |
1 or less |
Contactless |
| SW-T2V |
2-wire type |
L-type |
Red LED (lights when ON) |
4 or less |
1 (oil-resistant vinyl cabtire cord 2-core 0.2mm2) |
Single-color indicator type |
5~20 (load voltage: DC10~30V) |
-10～+60 |
IEC standard IP67, JIS C0920 (immersion-proof), oil-resistant |
1 or less |
Contactless |
How to Order
Check cylinder compatibility, cable length, connection type and operating voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
