Description
CKD BNB — Air Blow Nozzle (Blower Type) BNB Series, genuine CKD product.
Overview
The CKD BNB series is an air blow nozzle of blower type that produces a directed air stream for cleaning, cooling or drying. It is installed on blow lines or guns. It is used for removing chips, water and dust from workpieces. Nozzle design helps concentrate the air flow on the target area.
Key Features
- Directed air stream for blowing tasks
- Compact nozzle for blow lines
- Push-in or threaded connections
- Suitable for cleaning and drying
Specifications
| Part No. |
Shape |
Dimensions (mm) |
Air Consumption (L/min ANR) |
Mass (g) |
Type |
Material |
Heat Resistance Temp. (℃) |
Max. Operating Pressure (MPa) |
Port Size |
| BNB-6S15T |
Fan type |
13×1.5 (hole) |
736(0.3MPa)/0.17(20kPa) |
10 |
Blow specification |
Metal (stainless steel 304) |
400 |
0.7 |
R1/8 |
| BNB-8S15T |
Fan type |
17×1.5 (hole) |
1016(0.3MPa)/0.24(20kPa) |
16 |
Blow specification |
Metal (stainless steel 304) |
400 |
0.7 |
R1/4 |
How to Order
Check tube or port size and required flow. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

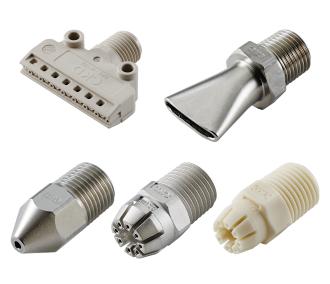

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
