Description
CKD BNE-8P10R — Air Blow Nozzle (Energy Saving Type) BNE Series, genuine CKD product.
Overview
The CKD BNE Series energy-saving air blow nozzle is designed to deliver effective blowing force while reducing compressed air consumption. The nozzle geometry entrains surrounding air to amplify the flow leaving the tip. It is used for blowing off chips, dust and water on machine tools, conveyors and cleaning or drying stations.
Key Features
- Reduces compressed air consumption
- Effective blowing force
- Threaded connection for easy installation
Specifications
| Part No. |
Shape |
Type |
Heat Resistance Temp. (℃) |
Hole Diameter (Ømm) |
Air Consumption (L/min ANR) |
Port Size |
No. of Holes |
Max. Operating Pressure (MPa) |
Material |
Mass (g) |
| BNE-8P10R |
Round type |
Energy-saving type |
60 |
1 |
245 |
R1/4 |
8 |
0.7 |
Resin (PP) |
2 |
How to Order
Select the nozzle size and connection thread for your application. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

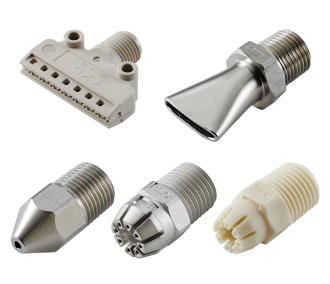

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
