Description
CKD 4GB420R-15-B-3 — Pilot Operated 5-Port Valve, Base Piping, 2-Position Double, genuine CKD product.
Overview
This CKD pilot-operated 5-port valve uses base piping and a 2-position double solenoid configuration. A momentary signal to either coil shifts the spool, and the valve holds its position when power is removed. It is used for cylinders that must maintain position on signal loss.
Key Features
- 2-position double solenoid holds last position
- Base piping for easy maintenance
- Pilot-operated spool
- Manifold-ready
Specifications
| Part No. |
Options |
Port Size |
Type |
Valve Specification |
Voltage (V) |
Enclosure Protection |
Power Consumption (W) |
Max. Operating Pressure (MPa) |
Fluid |
Fluid Temp. (℃) |
Min. Operating Pressure (MPa) |
Heat Resistance Class |
| 4GB420R-15-B-3 |
サ-ジキラ-・ランプ付(ランプは端子箱に付属) |
[P, R1, R2 ports] Rc1/2 |
Single valve |
Pilot |
Soft spool valve |
DC24 |
Jet-proof type (IP65 equivalent) |
0.4 |
0.7 |
Compressed air |
5～55 |
0.2 |
How to Order
Specify valve size, port size, manifold base and coil voltage. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

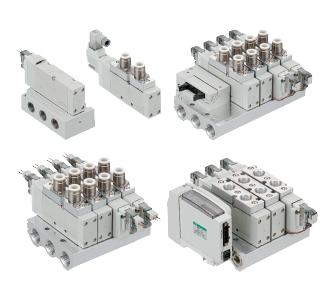

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
