Description
CKD HSVEC-15-4H — Manual Selector Valve HSVE Series, genuine CKD product.
Overview
The CKD HSVE Series manual selector valve switches or shuts off air flow by hand operation. Turning or shifting the handle changes the internal flow path, letting operators select supply or exhaust without electrical controls. It is used on machine air supplies, test equipment, maintenance isolation points and simple manually controlled pneumatic circuits.
Key Features
- Manual operation, no power needed
- Clear position indication
- Threaded ports for piping
Specifications
| Part No. |
Port Size |
Mass (g) |
Type |
Enclosure Protection |
No. of Ports |
Max. Operating Pressure (MPa) |
Thread Type |
Fluid |
Piping |
Fluid Temp. (℃) |
Min. Operating Pressure (MPa) |
Operating Angle (°) |
| HSVEC-15-4H |
Rc1/2 |
1100 |
Standard type |
Dustproof |
4 ports |
1 |
Rc |
Compressed air |
Horizontal piping |
5～50 |
0.05 |
90 |
How to Order
Confirm port size, number of positions and handle type. Please confirm the full part number and options against the CKD catalog; contact us if you need help identifying the right model.

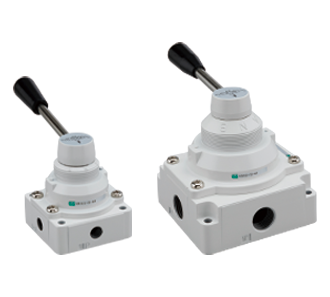

Product image is representative of the CKD series; appearance varies by size and model.
About CKD
CKD Corporation is a Japanese manufacturer of pneumatic and fluid control components, including solenoid valves, process valves, air cylinders, air preparation units (FRL), fittings and flow control devices.
Ordering & Shipping
- Genuine CKD product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
