Description
MITSUBISHI ELECTRIC MSO-T — Open Type Magnetic Starter AC Operated MSO-T Series, genuine MITSUBISHI ELECTRIC product.
Overview
The MSO-T Series is an open-type magnetic starter from Mitsubishi Electric, combining a magnetic contactor and thermal overload relay to start, stop and protect three-phase motors. The overload relay trips the contactor when motor current stays too high. It is mounted inside control panels for conveyors, pumps, fans and compressors.
Key Features
- Contactor and thermal overload relay combined
- Protects motors from overload
- Open type for panel mounting
- AC-operated coil in several voltages
Specifications
| Part No. |
Length (mm) |
Width (mm) |
Thickness (mm) |
Mass (kg) |
Coil Rated Voltage (V) |
Type |
Type |
Mounting Method |
Model Type |
Frequency (Hz) |
Series |
Frame |
| MSO-T100 22KW 200V AC200V |
191 |
100 |
127 |
2.2 |
AC200 |
Open type |
Electromagnetic switch |
Screw |
AC operated type |
50/60 |
MSO-T |
T100 |
| MSO-T12 1KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 0.1KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 0.1KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 0.2KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 0.2KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 0.4KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 0.75KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 1.5KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 1KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 1KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T12BC 2.2KW 200V AC200V 2A |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T12 |
| MSO-T20BC 0.75KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T20 |
| MSO-T20BC 1.5KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T20 |
| MSO-T20BC 2.2KW 200V AC200V |
115 |
46 |
79 |
0.38 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T20 |
| MSO-T21BC 1.5KW 200V AC200V |
128 |
63 |
82 |
0.59 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T21 |
| MSO-T35BC 5.5KW 200V AC200V |
157.5 |
75 |
91 |
0.79 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T35 |
| MSO-T65 11KW 200V AC200V |
169.5 |
90 |
106 |
1.1 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T65 |
| MSO-T80 18.5KW 200V AC200V |
169.5 |
90 |
106 |
1.1 |
AC200 |
Open type |
Electromagnetic switch |
IEC 35mm rail, screw |
AC operated type |
50/60 |
MSO-T |
T80 |
How to Order
Specify motor capacity and voltage, overload relay heater setting and coil voltage. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

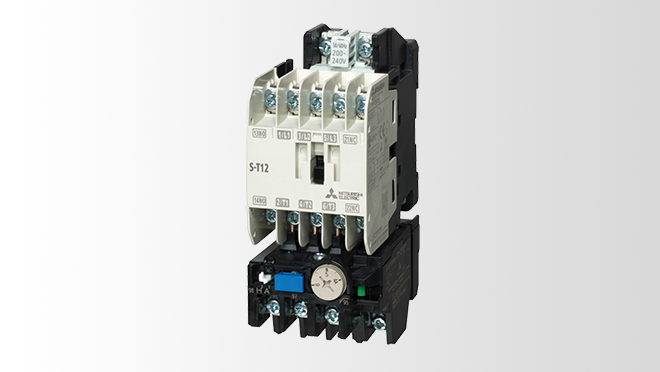

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
About MITSUBISHI ELECTRIC
Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.
Ordering & Shipping
- Genuine MITSUBISHI ELECTRIC product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
