Description
MITSUBISHI ELECTRIC S-2XT — Reversing Magnetic Contactor, Without Enclosure, genuine MITSUBISHI ELECTRIC product.
Overview
The MITSUBISHI ELECTRIC reversing magnetic contactor without enclosure combines two contactors with a mechanical interlock for forward and reverse motor control. The interlock physically prevents both contactors from closing at once, avoiding a phase short circuit. The open construction mounts inside control panels for reversing drives on conveyors, doors, hoists and machine tables.
Key Features
- Two contactors with mechanical interlock
- Open type for panel mounting
- AC coil voltage options
Specifications
| Part No. |
Coil Rated Voltage (V) |
Rated Voltage (V) |
Options |
Class |
Contact Configuration |
Type |
Operation Method |
Main Contacts |
Frame |
| S-2XT10 AC24V |
|
AC24 |
|
|
3aX2 |
|
Reversible |
|
|
| S-2XT12 AC200V |
AC200 |
|
|
|
3aX2 |
Electromagnetic contactor |
Reversible |
|
T12 |
| S-2XT20 AC200V |
|
AC200 |
|
|
3aX2 |
|
Reversible |
20 |
|
| S-2XT20BC AC200V |
AC200 |
|
With wiring-rationalized terminal (BC) |
Electromagnetic contactor |
3a×2 (main contact), 1a1b×2+2b (auxiliary contact) |
Electromagnetic contactor |
Reversible |
|
T20 |
How to Order
Confirm the frame size, coil voltage and auxiliary contact arrangement. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

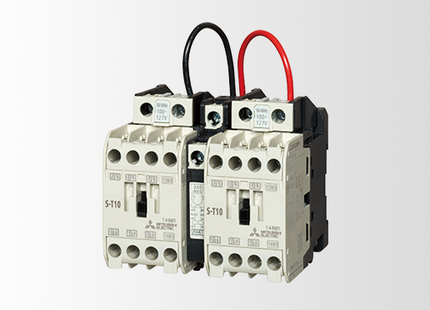

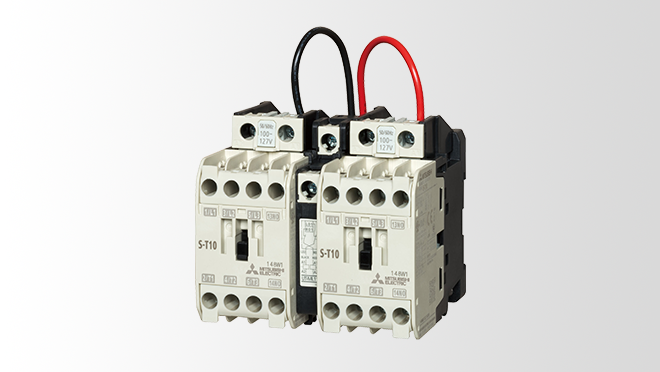

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
About MITSUBISHI ELECTRIC
Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.
