MITSUBISHI ELECTRIC DC-Operated Magnetic Starter MSOD-T Series (Part 2)

Description

MITSUBISHI ELECTRIC MSOD-T — DC-Operated Magnetic Starter MSOD-T Series, genuine MITSUBISHI ELECTRIC product.

Overview

The Mitsubishi Electric MSOD-T series is a DC-operated magnetic starter combining an SD-T contactor with a TH-T thermal overload relay. DC coils provide quiet operation and suit DC control circuits. It is used to start and protect motors in machine control panels. Models are selected by motor capacity and voltage.

Key Features

  • Contactor and overload relay as one starter
  • DC-operated coil
  • Motor overload protection
  • Compact MS-T series design

Specifications

Part No. Remarks Mounting Method Insulation Voltage (V) Mechanical Durability Electrical Durability Mode Switching Frequency (ops/h) Thermal Current (A)
MSOD-T20 0.7A 200V DC24V 1P2BLAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 0.7A 400V DC24V 1P2BMAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 0.9A 200V DC24V 1P2BNAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 0.9A 400V DC24V 1P2BPAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1.3A 200V DC24V 1P2BQAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1.3A 400V DC24V 1P2BRAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1.5KW 400V DC24V 1P2BZAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1.7A 200V DC24V 1P2BSAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1.7A 400V DC24V 1P2BTAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 11A 200V DC24V 1P2B7AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 11A 400V DC24V 1P2B8AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 15A 200V DC24V 1P2203A Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 15A 400V DC24V 1P2B0AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1KW 200V DC24V 1P2B1AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 1KW 400V DC24V 1P2BXAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 2.1A 200V DC24V 1P2BUAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 2.1A 400V DC24V 1P2BVAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 2.2KW 400V DC24V 1P2B2AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 2.5A 200V DC24V 1P2BWAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 2.5A 400V DC24V 1P2BXAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 3.6A 200V DC24V 1P2BYAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 3.6A 400V DC24V 1P2BZAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 3.7KW 400V DC24V 1P2B4AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 5.0A 200V DC24V 1P2B1AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 5.0A 400V DC24V 1P2B2AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 5.5KW 400V DC24V 1P2B8AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 6.6A 200V DC24V 1P2201A Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 6.6A 400V DC24V 1P2B4AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 7.5KW 400V DC24V 1P2B0AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 9.0A 200V DC24V 1P2202A Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T20 9.0A 400V DC24V 1P2B6AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million, 1 million (AC380V or higher) operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 20, [Auxiliary contact] 10
MSOD-T21 0.05KW 200V DC24V 1P2CCAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.05KW 400V DC24V 1P2CBAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.1KW 200V DC24V 1P2CGAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.1KW 400V DC24V 1P2CDAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.24A 200V DC24V 1P2CAAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.24A 400V DC24V 1P2CBAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.2KW 200V DC24V 1P2CLAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.2KW 400V DC24V 1P2CHAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.35A 200V DC24V 1P2CCAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.35A 400V DC24V 1P2CDAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.4KW 200V DC24V 1P2CQAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.4KW 400V DC24V 1P2CMAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.5A 200V DC24V 1P2CEAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.5A 400V DC24V 1P2CFAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.75KW 200V DC24V 1P2CUAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.75KW 400V DC24V 1P2CPAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.7A 200V DC24V 1P2CGAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.7A 400V DC24V 1P2CHAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.9A 200V DC24V 1P2CJAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 0.9A 400V DC24V 1P2CKAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1.3A 200V DC24V 1P2CLAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1.3A 400V DC24V 1P2CMAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1.5KW 200V DC24V 1P2CYAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1.5KW 400V DC24V 1P2CVAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1.7A 200V DC24V 1P2CNAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1.7A 400V DC24V 1P2CPAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 11A 200V DC24V 1P2C3AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 11A 400V DC24V 1P2C4AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 15A 200V DC24V 1P2C5AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 15A 400V DC24V 1P2C6AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1KW 200V DC24V 1P2CWAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 1KW 400V DC24V 1P2CTAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 2.1A 200V DC24V 1P2CQAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 2.1A 400V DC24V 1P2CRAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 2.2KW 200V DC24V 1P2C1AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 2.2KW 400V DC24V 1P2CXAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 2.5A 200V DC24V 1P2CSAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 2.5A 400V DC24V 1P2CTAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 3.6A 200V DC24V 1P2CUAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 3.6A 400V DC24V 1P2CVAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 3.7KW 200V DC24V 1P2C5AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 3.7KW 400V DC24V 1P2CZAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 5.0A 200V DC24V 1P2CWAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 5.0A 400V DC24V 1P2CXAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 5.5KW 400V DC24V 1P2C4AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 6.6A 200V DC24V 1P2CYAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 6.6A 400V DC24V 1P2CZAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 7.5KW 400V DC24V 1P2C6AK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 9.0A 200V DC24V 1P2C1AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T21 9.0A 400V DC24V 1P2C2AA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 32, [Auxiliary contact] 10
MSOD-T35 0.05KW 200V DC24V 1P24CAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.05KW 400V DC24V 1P24BAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.1KW 200V DC24V 1P24GAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.1KW 400V DC24V 1P24DAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.24A 200V DC24V 1P24AAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.24A 400V DC24V 1P24BAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.2KW 200V DC24V 1P24LAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.2KW 400V DC24V 1P24HAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.35A 200V DC24V 1P24CAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.35A 400V DC24V 1P24DAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.4KW 200V DC24V 1P24QAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.4KW 400V DC24V 1P24MAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.5A 200V DC24V 1P24EAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.5A 400V DC24V 1P24FAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.75KW 200V DC24V 1P24UAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.75KW 400V DC24V 1P24PAK Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.7A 200V DC24V 1P24GAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.7A 400V DC24V 1P24HAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10
MSOD-T35 0.9A 200V DC24V 1P24JAA Screw, DIN rail 690 10 million operations [AC-3 (domestic rating)] 2 million operations [Thermal relay protection] 2-element (overload/locked-rotor protection) [AC-3] 1800 [Main contact] 60, [Auxiliary contact] 10

How to Order

Specify motor capacity and voltage, overload setting range and coil voltage. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

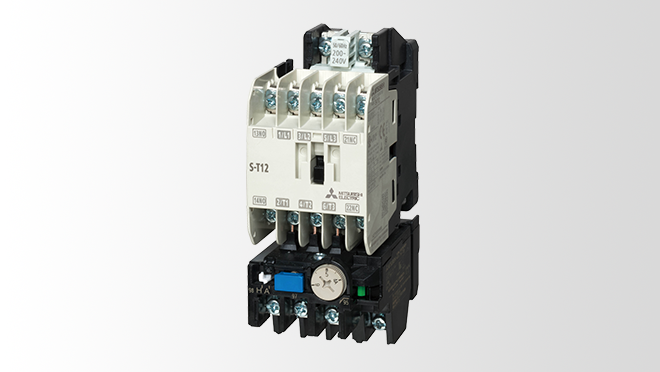

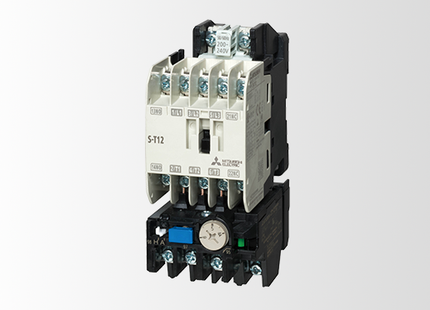

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
