Description
MITSUBISHI ELECTRIC FR-E810W-0. — Inverter FREQROL-E800 Series Single-Phase 100V, genuine MITSUBISHI ELECTRIC product.
Overview
The FREQROL-E800 single-phase 100V model from MITSUBISHI ELECTRIC is a compact inverter that runs three-phase motors from a single-phase 100V supply. It is used for small conveyors, fans, pumps and machines in facilities where only single-phase power is available. It provides speed control and energy savings.
Key Features
- Runs three-phase motors from 100V single-phase
- Compact inverter design
- Speed control and energy savings
- Suitable for small machinery
Specifications
| Part No. |
Voltage |
Construction |
Rated Frequency (Hz) |
Applicable Motor Capacity (kW) |
Class |
Protocol |
RoHS Directive (10 Substances) |
Logic Function |
| FR-E810W-0.1KSCEPA |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 60 |
(ND)0.1 |
Voltage type: 100V |
Protocol group A |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.1KSCEPB |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 50 |
(ND)0.1 |
Voltage type: 100V |
Protocol group B |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.2KSCEPA |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 60 |
(ND)0.2 |
Voltage type: 100V |
Protocol group A |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.2KSCEPB |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 50 |
(ND)0.2 |
Voltage type: 100V |
Protocol group B |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.4KSCEPA |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 60 |
(ND)0.4 |
Voltage type: 100V |
Protocol group A |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.4KSCEPB |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 50 |
(ND)0.4 |
Voltage type: 100V |
Protocol group B |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.75KSCEPA |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 60 |
(ND)0.75 |
Voltage type: 100V |
Protocol group A |
Compliant |
Control: (initial state) sink logic |
| FR-E810W-0.75KSCEPB |
1-phase 100V input (voltage doubler rectification) |
Standard construction product |
(Default setting) 50 |
(ND)0.75 |
Voltage type: 100V |
Protocol group B |
Compliant |
Control: (initial state) sink logic |
How to Order
Confirm motor capacity and that a 100V single-phase supply is used. Please confirm the full part number and options against the MITSUBISHI ELECTRIC catalog; contact us if you need help identifying the right model.

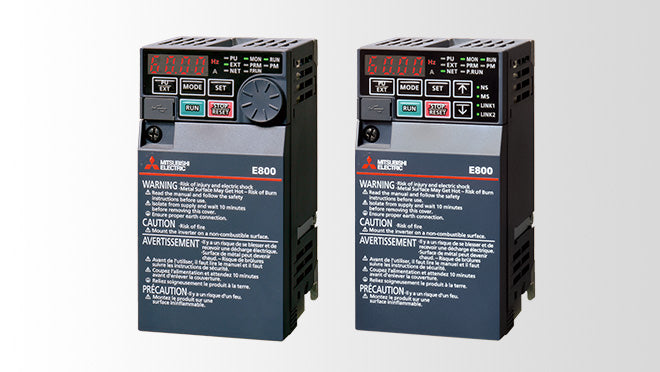

Product image is representative of the MITSUBISHI ELECTRIC series; appearance varies by size and model.
About MITSUBISHI ELECTRIC
Mitsubishi Electric is a Japanese manufacturer of factory automation and low-voltage power distribution equipment, including MELSEC PLCs, servo systems, inverters, magnetic contactors and starters, circuit breakers and measuring instruments.
