Description
TSUBAKI TKS0 — TKS Type Cable Carrier Frame, genuine TSUBAKI product.
Overview

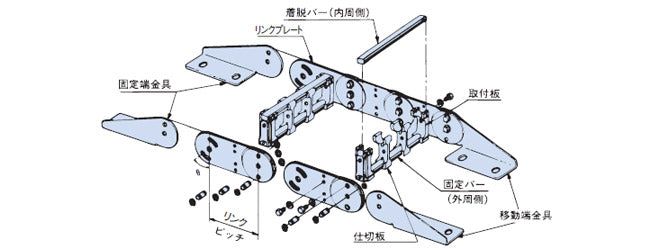

The TSUBAKI TKS Type cable carrier frame forms the link structure of a steel cable carrier that guides and protects moving cables and hoses. Frames support crossbars and separators that hold cables in place during repeated travel. It is used on machine tools, cranes and large automated machinery requiring robust cable management.
Key Features
- Steel construction for heavy-duty applications
- Supports separators and crossbars for cable layout
- Designed for long-stroke moving machinery
Specifications
| Part No. |
Type |
Pitch (mm) |
Model Type |
External Height (mm) |
Height (mm) |
Frame Width (mm) |
Outer Width (mm) |
Max. Cable/Hose O.D. (mm) |
Max. Cable/Hose Weight (kg/m) |
Max. Travel Stroke (mm) |
| TKS070-SP100 |
Frame |
70 |
TKS070 |
50 |
31 |
100 |
119.5 |
27 |
10 |
6.7 |
| TKS070-SP150 |
Frame |
70 |
TKS070 |
50 |
31 |
150 |
169.5 |
27 |
10 |
6.7 |
| TKS070-SP200 |
Frame |
70 |
TKS070 |
50 |
31 |
200 |
219.5 |
27 |
10 |
6.7 |
| TKS095-SP100 |
Frame |
95 |
TKS095 |
70 |
40.5 |
100 |
119.5 |
42 |
10 |
8.7 |
| TKS095-SP150 |
Frame |
95 |
TKS095 |
70 |
40.5 |
150 |
169.5 |
42 |
10 |
8.7 |
| TKS095-SP200 |
Frame |
95 |
TKS095 |
70 |
40.5 |
200 |
219.5 |
42 |
10 |
8.7 |
How to Order
Confirm the carrier size, inner width and frame spacing. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
