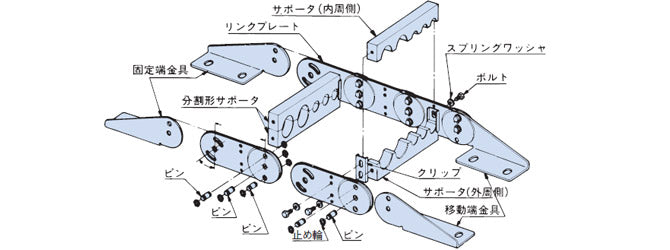

This moving end bracket is a mounting part for the TSUBAKI TKP plastic cable carrier. Cable carriers guide and protect cables and hoses that move with machine axes, and the moving end bracket attaches the carrier's last link to the travelling part of the machine. Correct brackets keep the carrier aligned and prevent stress on cables during repeated strokes.
| Part No. |
Compatibility |
Type |
Material |
Mass (g) |
Type |
Pitch (mm) |
Remarks |
Model Type |
Outer Width (mm) |
Inner Width (mm) |
| TKP13H10W10-MI |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
13 |
|
TKP13H10 |
16 |
10 |
| TKP13H10W10-MO |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
13 |
|
TKP13H10 |
16 |
10 |
| TKP13H10W10TC-MI |
|
Outer: removable |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
13 |
Integrated type / inner-side mounting |
TKP13H10 |
17 |
10 |
| TKP13H10W15-MI |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
13 |
Integrated type / inner-side mounting |
TKP13H10 |
21 |
15 |
| TKP13H10W15-MO |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
13 |
Integrated type / outer-side mounting |
TKP13H10 |
21 |
15 |
| TKP13H10W20-MI |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
13 |
|
TKP13H10 |
26 |
20 |
| TKP13H10W20-MO |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
13 |
|
TKP13H10 |
26 |
20 |
| TKP13H10W20TC-MI |
|
Outer: removable |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
13 |
Integrated type / inner-side mounting |
TKP13H10 |
27 |
20 |
| TKP13H10W6-MI |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
13 |
Integrated type / inner-side mounting |
TKP13H10 |
12 |
6 |
| TKP13H10W6-MO |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
13 |
Integrated type / outer-side mounting |
TKP13H10 |
12 |
6 |
| TKP17H11W10-MI |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
17 |
|
TKP17H11 |
18 |
10 |
| TKP17H11W10-MO |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
17 |
|
TKP17H11 |
18 |
10 |
| TKP18H14W15TC-MI |
|
Outer: removable |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / inner-side mounting |
TKP18H14 |
24 |
15 |
| TKP18H14W15TC-MO |
|
Outer: removable |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / outer-side mounting |
TKP18H14 |
24 |
15 |
| TKP18H14W40TC-MI |
|
Outer: removable |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / inner-side mounting |
TKP18H14 |
49 |
40 |
| TKP18H14W40TC-MO |
|
Outer: removable |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / outer-side mounting |
TKP18H14 |
49 |
40 |
| TKP18H15W15-MI |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
18 |
|
TKP18H15 |
23 |
15 |
| TKP18H15W15-MO |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
18 |
|
TKP18H15 |
23 |
15 |
| TKP18H15W20-MI |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / inner-side mounting |
TKP18H15 |
28 |
20 |
| TKP18H15W20-MO |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / outer-side mounting |
TKP18H15 |
28 |
20 |
| TKP18H15W30-MI |
|
Common |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
18 |
Integrated type / inner-side mounting |
TKP18H15 |
38 |
30 |
| TKP18H15W30-MO |
|
Moving end, outer side |
Engineering plastic |
|
|
|
|
|
|
30 |
| TKP18H15W40-MI |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
18 |
|
TKP18H15 |
48 |
40 |
| TKP18H15W40-MO |
|
Integrated type |
|
|
Moving-end bracket / mounting fitting |
18 |
|
TKP18H15 |
48 |
40 |
| TKP25H15W15-MI |
|
Outer: openable one side |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
25 |
Integrated type / inner-side mounting |
TKP25H15 |
23 |
15 |
| TKP25H15W15-MO |
|
Outer: openable one side |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
25 |
Integrated type / outer-side mounting |
TKP25H15 |
23 |
15 |
| TKP25H15W20-MI |
|
Outer: openable one side |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
25 |
Integrated type / inner-side mounting |
TKP25H15 |
28 |
20 |
| TKP25H15W20-MO |
|
Outer: openable one side |
Engineering plastic |
|
Moving-end bracket / mounting fitting |
25 |
Integrated type / outer-side mounting |
TKP25H15 |
28 |
20 |
| TKP25H15W30-MI |
|
Outer: openable both sides |
|
|
Moving-end bracket / mounting fitting |
25 |
|
TKP25H15 |
39 |
30 |
| TKP25H15W30-MO |
|
Outer: openable both sides |
|
|
Moving-end bracket / mounting fitting |
25 |
|
TKP25H15 |
39 |
30 |
| TKP35H22W50-MI |
(Cable carrier body) TKP35H22-□□W50R□□ |
Moving end, inner opening |
|
20 |
Moving-end bracket / mounting fitting |
35 |
Integrated type / inner-side mounting |
TKP35H22 |
62 |
50 |
| TKP35H22W63-MI |
(Cable carrier body) TKP35H22-□□W63R□□ |
Moving end, inner opening |
|
24 |
Moving-end bracket / mounting fitting |
35 |
Integrated type / inner-side mounting |
TKP35H22 |
77 |
63 |
| TKP35H22W63-MO |
(Cable carrier body) TKP35H22-□□W63R□□ |
Moving end, outer opening |
|
24 |
Moving-end bracket / mounting fitting |
35 |
Integrated type / outer-side mounting |
TKP35H22 |
77 |
63 |
| TKP35H32W16-MI |
|
Outer: openable both sides |
|
|
Moving-end bracket / mounting fitting |
35 |
|
TKP35H32 |
26 |
16 |
| TKP35H32W16-MO |
|
Outer: openable both sides |
|
|
Moving-end bracket / mounting fitting |
35 |
|
TKP35H32 |
26 |
16 |
| TKP45H25-MC |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
Common |
Common |
| TKP45H25-MIA |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
Common |
Common |
| TKP45H25-MIB |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
Common |
Common |
| TKP45H25-MOB |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
Common |
Common |
| TKP45H25W103-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
123 |
103 |
| TKP45H25W103-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
123 |
103 |
| TKP45H25W38-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
56 |
38 |
| TKP45H25W38-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
56 |
38 |
| TKP45H25W58-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
78 |
58 |
| TKP45H25W58-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
78 |
58 |
| TKP45H25W78-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
98 |
78 |
| TKP45H25W78-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
45 |
|
TKP45H25 |
98 |
78 |
| TKP58H39-MC |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
Common |
Common |
| TKP58H39-MIA |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
Common |
Common |
| TKP58H39-MIB |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
Common |
Common |
| TKP58H39-MOA |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
Common |
Common |
| TKP58H39-MOB |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
Common |
Common |
| TKP58H39W100-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
121 |
100 |
| TKP58H39W100-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
121 |
100 |
| TKP58H39W125-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
146 |
125 |
| TKP58H39W125-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
146 |
125 |
| TKP58H39W50-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
71 |
50 |
| TKP58H39W50-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
71 |
50 |
| TKP58H39W75-MI |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
96 |
75 |
| TKP58H39W75-MO |
|
Common |
|
|
Moving-end bracket / mounting fitting |
58 |
|
TKP58H39 |
96 |
75 |
| TKP62H34-MIA |
|
Outer: openable one side / Inner: removed |
|
|
Moving-end bracket / mounting fitting |
62 |
|
TKP62H34 |
Common |
Common |
| TKP62H34-MOA |
|
Outer: openable one side / Inner: removed |
|
|
Moving-end bracket / mounting fitting |
62 |
|
TKP62H34 |
Common |
Common |
| TKP68H46-MC |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
Common |
Common |
| TKP68H46-MIA |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
Common |
Common |
| TKP68H46-MOA |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
Common |
Common |
| TKP68H46W100-MU |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
122 |
100 |
| TKP68H46W125-MU |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
147 |
125 |
| TKP68H46W150-MU |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
172 |
150 |
| TKP68H46W175-MU |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
197 |
175 |
| TKP68H46W75-MU |
|
Common |
|
|
Moving-end bracket / mounting fitting |
68 |
|
TKP68H46 |
97 |
75 |
Confirm carrier type, inner height and width, and whether a moving or fixed end bracket is required. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
