TSUBAKI RS100-1B — RS Standard Sprocket RS100 Type 1B, genuine TSUBAKI product.
Overview

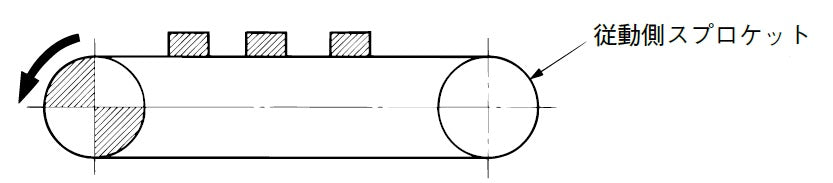

The TSUBAKI RS100 Type 1B standard sprocket has a hub on one side and runs with RS100 roller chain. This large-pitch sprocket transmits substantial torque in heavy conveyors, construction machinery and industrial drives. The pilot bore can be machined to the required shaft size and keyway.
Key Features
- Single-side hub for keyway and set screws
- Tooth form for RS100 chain
- Range of tooth counts for speed ratios
- Hardened teeth available on many sizes
Specifications
| Part No. |
Material |
No. of Teeth |
Bore Type |
Chain Pitch (mm) |
Tooth Width (mm) |
Type |
Type |
Approx. Mass (kg) |
No. of Strands |
Pitch Diameter (Dp) (Ømm) |
Outer Diameter (Do) (Ømm) |
Roller Diameter (Ømm) |
| RS100-1B11TQ |
Carbon steel for machine structural use, machined specification |
11 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
2.2 |
1 |
112.7 |
127 |
19.05 |
| RS100-1B12TQ |
Carbon steel for machine structural use, machined specification |
12 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
2.8 |
1 |
122.67 |
138 |
19.05 |
| RS100-1B13TQ |
Carbon steel for machine structural use, machined specification |
13 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
3.1 |
1 |
132.67 |
148 |
19.05 |
| RS100-1B14TQ |
Carbon steel for machine structural use, machined specification |
14 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
3.4 |
1 |
142.68 |
158 |
19.05 |
| RS100-1B15TQ |
Carbon steel for machine structural use, machined specification |
15 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
4 |
1 |
152.71 |
168 |
19.05 |
| RS100-1B16TQ |
Carbon steel for machine structural use, machined specification |
16 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
4.3 |
1 |
162.75 |
179 |
19.05 |
| RS100-1B17TQ |
Carbon steel for machine structural use, machined specification |
17 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
5.1 |
1 |
172.79 |
189 |
19.05 |
| RS100-1B18TQ |
Carbon steel for machine structural use, machined specification |
18 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
5.4 |
1 |
182.84 |
199 |
19.05 |
| RS100-1B19TQ |
Carbon steel for machine structural use, machined specification |
19 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
5.8 |
1 |
192.9 |
209 |
19.05 |
| RS100-1B20TQ |
Carbon steel for machine structural use, machined specification |
20 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
6.3 |
1 |
202.96 |
220 |
19.05 |
| RS100-1B21TQ |
Carbon steel for machine structural use, machined specification |
21 |
Pilot bore type |
31.75 |
18 |
Strong type |
Sprocket |
6.7 |
1 |
213.03 |
230 |
19.05 |
| RS100-1B22T |
Carbon steel for machine structural use, machined specification |
22 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
8.1 |
1 |
223.1 |
240 |
19.05 |
| RS100-1B24T |
Carbon steel for machine structural use, machined specification |
24 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
9.1 |
1 |
243.25 |
260 |
19.05 |
| RS100-1B25T |
Carbon steel for machine structural use, machined specification |
25 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
9.6 |
1 |
253.32 |
270 |
19.05 |
| RS100-1B26T |
Carbon steel for machine structural use, machined specification |
26 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
10.2 |
1 |
263.41 |
281 |
19.05 |
| RS100-1B28T |
Carbon steel for machine structural use, machined specification |
28 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
11.4 |
1 |
283.57 |
301 |
19.05 |
| RS100-1B30T |
Carbon steel for machine structural use, machined specification |
30 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
12.7 |
1 |
303.75 |
321 |
19.05 |
| RS100-1B45T |
Carbon steel for machine structural use (teeth), rolled steel for general structure (hub), welded specification |
45 |
Pilot bore type |
31.75 |
18 |
Standard product |
Sprocket |
26.5 |
1 |
455.15 |
473 |
19.05 |
How to Order
Specify number of teeth, tooth hardening and bore requirements. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
