Description
TSUBAKI RF2 — Double Pitch Chain S Roller Type, Both-Side Attachment Every Link, genuine TSUBAKI product.
Overview
This Tsubaki double pitch chain has S rollers and attachments on both sides of every link. Attachments allow slats, carriers or fixtures to be mounted along the conveyor. Double pitch chain is lighter and economical for long-center conveyors in packaging and assembly lines. Attachments are typically drilled for bolting fixtures in place.
Key Features
- Attachments on both sides of every link
- S rollers run on sprocket teeth
- Long pitch reduces weight and cost
- Suitable for long-distance conveying
Specifications
| Part No. |
Material |
Material (Body) |
Type |
Pitch (mm) |
Model Type |
Operating Temp. Range (˚C) |
Link Width (mm) |
Links per Unit |
No. of Strands |
Size S (mm) |
Unit Length (m) |
Pin Type |
| RF2040S-1LK1 |
Made of steel |
Steel |
Attachment chain |
25.4 |
S roller type |
-10～150 |
7.95 |
120 |
1 |
9.1 |
3 |
(Fitting link) clip type, (chain body) rivet type |
| RF2040S-1LK2 |
Made of steel |
Steel |
Attachment chain |
25.4 |
S roller type |
-10～150 |
7.95 |
120 |
1 |
9.1 |
3 |
(Fitting link) clip type, (chain body) rivet type |
| RF2050S-1LK1 |
Made of steel |
Steel |
Attachment chain |
31.75 |
S roller type |
-10～150 |
9.53 |
96 |
1 |
11.1 |
3 |
(Fitting link) clip type, (chain body) rivet type |
| RF2050S-1LK2 |
Made of steel |
Steel |
Attachment chain |
31.75 |
S roller type |
-10～150 |
9.53 |
96 |
1 |
11.1 |
3 |
(Fitting link) clip type, (chain body) rivet type |
| RF2060S-1LK1 |
Made of steel |
Steel |
Attachment chain |
38.1 |
S roller type |
-10～150 |
12.7 |
80 |
1 |
14.7 |
3 |
(Fitting link) clip type, (chain body) rivet type |
| RF2060S-1LK2 |
Made of steel |
Steel |
Attachment chain |
38.1 |
S roller type |
-10～150 |
12.7 |
80 |
1 |
14.7 |
3 |
(Fitting link) clip type, (chain body) rivet type |
| RF2080S-1LK1 |
Made of steel |
Steel |
Attachment chain |
50.8 |
S roller type |
-10～150 |
15.88 |
60 |
1 |
19.1 |
3 |
(Fitting link) cotter pin, (chain body) rivet |
| RF2080S-1LK2 |
Made of steel |
Steel |
Attachment chain |
50.8 |
S roller type |
-10～150 |
15.88 |
60 |
1 |
19.1 |
3 |
(Fitting link) cotter pin, (chain body) rivet |
| RF2100S-1LK2 |
Made of steel |
Steel |
Attachment chain |
63.5 |
S roller type |
-10～150 |
19.05 |
48 |
1 |
23.4 |
3 |
(Fitting link) cotter pin, (chain body) rivet |
How to Order
Specify chain size, attachment type, attachment spacing and length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

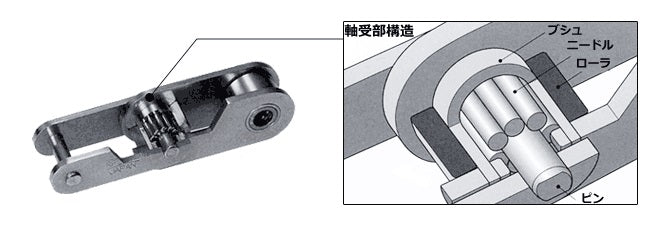

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
