TSUBAKI RF2 — Double Pitch Chain Connecting Link, Both-Side Attachment, genuine TSUBAKI product.
Overview
This Tsubaki connecting link is used to close a double pitch chain that carries K-type attachments on both sides of the link. It keeps the attachment spacing continuous across the joint, so slats, carriers or fixtures can be mounted without gaps. Typical uses include slat conveyors, assembly line carriers and packaging machine conveyors.
Key Features
- Attachments on both sides of the link
- Maintains continuous attachment pitch through the joint
- Matched to RF2000-series double pitch chain sizes
- Allows chain to be joined or shortened on site
Specifications
| Part No. |
Material |
Material (Body) |
Type |
Type |
Pitch (mm) |
Operating Temp. Range (˚C) |
Link Width (mm) |
No. of Strands |
Size S (mm) |
Pin Type |
Dim. C (mm) |
X(mm) |
| RF2040-K1-JL |
Made of steel |
Steel |
Connecting link |
Attachment chain |
25.4 |
-10～150 |
7.95 |
1 |
9.1 |
Clip type |
12.7 |
19.3 |
| RF2060-K1-JL |
Made of steel |
Steel |
Connecting link |
Attachment chain |
38.1 |
-10～150 |
12.7 |
1 |
14.7 |
Clip type |
21.45 |
31.5 |
| RF2080-K1-JL |
Made of steel |
Steel |
Connecting link |
Attachment chain |
50.8 |
-10～150 |
15.88 |
1 |
19.1 |
Cotter pin type |
27.8 |
40.7 |
| RF2100-K1-JL |
Made of steel |
Steel |
Connecting link |
Attachment chain |
63.5 |
-10～150 |
19.05 |
1 |
23.4 |
Cotter pin type |
33.35 |
49.9 |
How to Order
Check the chain number, attachment type (K1 or K2) and hole size to match the existing chain. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

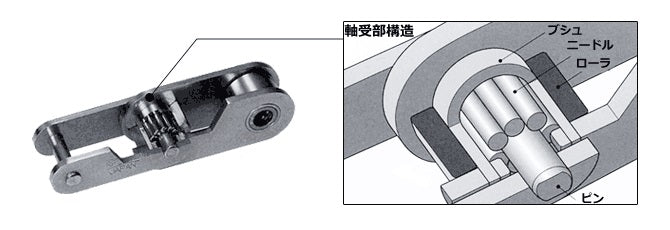

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
