TSUBAKI PT — PX Pulley P5M Type (Bar Stock, Aluminum), genuine TSUBAKI product.
Overview
The Tsubaki PX pulley P5M bar stock is an aluminum timing pulley blank with P5M teeth, supplied in long lengths for users to cut and machine. It allows custom pulley widths and bores. It is used in prototypes and special machines. Bar stock is useful for short-run production where catalog pulleys do not fit the design.
Key Features
- Aluminum bar stock with P5M teeth
- Cut to custom length
- Allows custom bores
- Lightweight
Specifications
| Part No. |
No. of Teeth |
Type |
Flange |
Pitch Diameter (Dp) (Ømm) |
Dim. BL (mm) |
Flange Thickness (mm) |
Dim. do (mm) |
Dim. Bw (mm) |
Hub Diameter Dh (Ømm) |
Flange O.D. Df (Ømm) |
Flange I.D. df (Ømm) |
| PT12P5M-100L-A |
12 |
PX pulley |
PTAF10230130 |
19.1 |
120 |
1 |
17.96 |
100 |
12 |
23 |
13 |
| PT14P5M-100L-A |
14 |
PX pulley |
PTAF10280160 |
22.28 |
120 |
1 |
21.14 |
100 |
16 |
28 |
16 |
| PT15P5M-100L-A |
15 |
PX pulley |
PTAF10290180 |
23.87 |
120 |
1 |
22.73 |
100 |
16 |
29 |
18 |
| PT16P5M-100L-A |
16 |
PX pulley |
PTAF10310190 |
25.46 |
120 |
1 |
24.32 |
100 |
16 |
31 |
19 |
| PT17P5M-100L-A |
17 |
PX pulley |
PTAF10320212 |
27.06 |
120 |
1 |
25.91 |
100 |
16 |
32 |
21.2 |
| PT18P5M-100L-A |
18 |
PX pulley |
PTAF10360224 |
28.65 |
120 |
1 |
27.51 |
100 |
16 |
36 |
22.4 |
| PT19P5M-100L-A |
19 |
PX pulley |
PTAF10360224 |
30.24 |
120 |
1 |
29.1 |
100 |
16 |
36 |
22.4 |
| PT20P5M-100L-A |
20 |
PX pulley |
PTAF10360224 |
31.83 |
120 |
1 |
30.69 |
100 |
16 |
36 |
22.4 |
| PT21P5M-100L-A |
21 |
PX pulley |
PTAF10390265 |
33.42 |
120 |
1 |
32.28 |
100 |
16 |
39 |
26.5 |
| PT22P5M-100L-A |
22 |
PX pulley |
PTAF10430300 |
35.01 |
120 |
1 |
33.87 |
100 |
16 |
43 |
30 |
| PT24P5M-100L-A |
24 |
PX pulley |
PTAF10440310 |
38.2 |
120 |
1 |
37.06 |
100 |
16 |
44 |
31 |
| PT25P5M-100L-A |
25 |
PX pulley |
PTAF10450335 |
39.79 |
120 |
1 |
38.65 |
100 |
16 |
45 |
33.5 |
| PT26P5M-100L-A |
26 |
PX pulley |
PTAF10470355 |
41.38 |
120 |
1 |
40.24 |
100 |
16 |
47 |
35.5 |
| PT28P5M-100L-A |
28 |
PX pulley |
PTAF10520375 |
44.56 |
120 |
1 |
43.42 |
100 |
16 |
52 |
37.5 |
| PT30P5M-100L-A |
30 |
PX pulley |
PTAF10550425 |
47.75 |
120 |
1 |
46.6 |
100 |
16 |
55 |
42.5 |
| PT32P5M-100L-A |
32 |
PX pulley |
PTAF10550425 |
50.93 |
120 |
1 |
49.79 |
100 |
16 |
55 |
42.5 |
| PT36P5M-100L-A |
36 |
PX pulley |
PTAF10640500 |
57.3 |
120 |
1 |
56.15 |
100 |
16 |
64 |
50 |
| PT40P5M-100L-A |
40 |
PX pulley |
PTAF10670560 |
63.66 |
120 |
1 |
62.52 |
100 |
16 |
67 |
56 |
| PT44P5M-100L-A |
44 |
PX pulley |
PTAF10740630 |
70.03 |
120 |
1 |
68.89 |
100 |
16 |
74 |
63 |
| PT48P5M-100L-A |
48 |
PX pulley |
PTAF10820670 |
76.39 |
120 |
1 |
75.25 |
100 |
16 |
82 |
67 |
| PT50P5M-100L-A |
50 |
PX pulley |
PTAF10860710 |
79.58 |
120 |
1 |
78.44 |
100 |
16 |
86 |
71 |
| PT60P5M-100L-A |
60 |
PX pulley |
PTAF101030850 |
95.49 |
120 |
1 |
94.35 |
100 |
16 |
103 |
85 |
How to Order
Specify tooth count, length and material. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

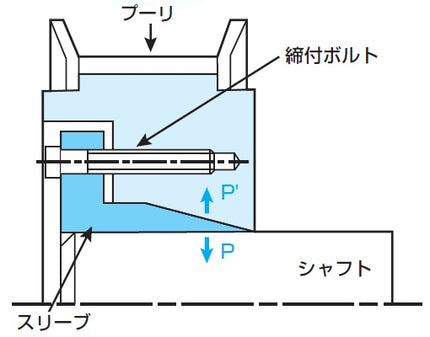

Product image is representative of the TSUBAKI series; appearance varies by size and model.
