Description
TSUBAKI BDCP-P — Belt Clamp, genuine TSUBAKI product.
Overview

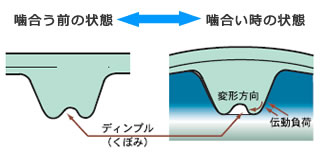

A belt clamp fixes the ends of an open-length timing belt to a moving carriage or slide. This TSUBAKI clamp matches the PX P5M tooth profile, so the belt is gripped by its teeth without slipping. It is used in linear motion systems, gantries and positioning axes where a timing belt moves a load back and forth.
Key Features
- Clamps open-ended timing belts to carriages
- Tooth profile matches the belt pitch
- Secure grip without belt slippage
- Sized for specific belt widths
Specifications
| Part No. |
Material |
Type |
Dim. H (mm) |
Applicable Belt Width (mm) |
Dim. A (mm) |
Dim. T (mm) |
Surface Treatment |
Dim. B (mm) |
Mounting I.D. d (mm) |
Mounting Hole Pitch a (mm) |
Mounting Hole Pitch b (mm) |
Pitch P (mm) |
| BDCP-P5M10 |
High-strength aluminum |
P5M |
6 |
10 |
27 |
1.9 |
White alumite |
35 |
4.5 |
16 |
25 |
5 |
| BDCP-P5M15 |
High-strength aluminum |
P5M |
6 |
15 |
32 |
1.9 |
White alumite |
35 |
4.5 |
21 |
25 |
5 |
| BDCP-P5M20 |
High-strength aluminum |
P5M |
6 |
20 |
37 |
1.9 |
White alumite |
35 |
4.5 |
26 |
25 |
5 |
| BDCP-P5M25 |
High-strength aluminum |
P5M |
6 |
25 |
42 |
1.9 |
White alumite |
35 |
4.5 |
31 |
25 |
5 |
| BDCP-P8M15 |
High-strength aluminum |
P8M |
8 |
15 |
34 |
3 |
White alumite |
54 |
5.5 |
22 |
40 |
8 |
| BDCP-P8M20 |
High-strength aluminum |
P8M |
8 |
20 |
39 |
3 |
White alumite |
54 |
5.5 |
27 |
40 |
8 |
| BDCP-P8M25 |
High-strength aluminum |
P8M |
8 |
25 |
44 |
3 |
White alumite |
54 |
5.5 |
32 |
40 |
8 |
How to Order
Confirm belt pitch type and belt width. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
