TSUBAKI Hypoid Motor with Brake (Top Runner Motor Compliant), HMTR075-38

Description

TSUBAKI HMTR075-38 — Hypoid Motor with Brake (Top Runner Motor Compliant), genuine TSUBAKI product.

Overview

This Tsubaki hypoid motor combines an induction motor, a hypoid gear reducer and an electromagnetic brake in one right-angle unit. The hypoid gear gives high efficiency at right angles, and the brake holds the load when power is cut. It complies with Japan's Top Runner motor efficiency standard and is used on conveyors, lifters and transfer equipment.

Key Features

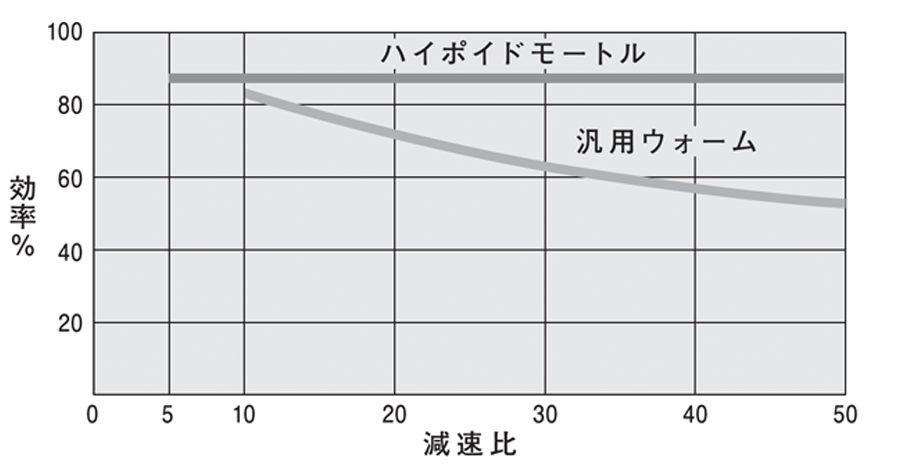

  • Right-angle hypoid gearing with high efficiency
  • Integrated brake holds the load at stop
  • Top Runner compliant high-efficiency motor
  • Hollow or solid output shaft options

Specifications

Part No. Reduction Ratio Brake Frame No. Output (kW) Type Mounting Method Voltage (V) Power Supply Output Shaft Allowable Torque (50/60Hz) (N·m) Rotational Speed (r/min) Output Shaft Allowable O.H.L (N) Shaft Arrangement
HMTR075-38L10LB 10 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/42.1、60Hz/34.3 50Hz/150、60Hz/180 2205 Left
HMTR075-38L10RB 10 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/42.1、60Hz/34.3 50Hz/150、60Hz/180 2205 Right
HMTR075-38L10TB 10 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/42.1、60Hz/34.3 50Hz/150、60Hz/180 2205 Both sides
HMTR075-38L15LB 15 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/62.7、60Hz/51.9 50Hz/100、60Hz/120 2401 Left
HMTR075-38L15RB 15 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/62.7、60Hz/51.9 50Hz/100、60Hz/120 2401 Right
HMTR075-38L15TB 15 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/62.7、60Hz/51.9 50Hz/100、60Hz/120 2401 Both sides
HMTR075-38L20LB 20 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/83.3、60Hz/69.6 50Hz/75、60Hz/90 2646 Left
HMTR075-38L20RB 20 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/83.3、60Hz/69.6 50Hz/75、60Hz/90 2646 Right
HMTR075-38L20TB 20 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/83.3、60Hz/69.6 50Hz/75、60Hz/90 2646 Both sides
HMTR075-38L25LB 25 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/104、60Hz/87.2 50Hz/60、60Hz/72 2891 Left
HMTR075-38L25RB 25 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/104、60Hz/87.2 50Hz/60、60Hz/72 2891 Right
HMTR075-38L25TB 25 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/104、60Hz/87.2 50Hz/60、60Hz/72 2891 Both sides
HMTR075-38L30LB 30 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/125、60Hz/104 50Hz/50、60Hz/60 3136 Left
HMTR075-38L30RB 30 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/125、60Hz/104 50Hz/50、60Hz/60 3136 Right
HMTR075-38L30TB 30 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/125、60Hz/104 50Hz/50、60Hz/60 3136 Both sides
HMTR075-38L40LB 40 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/159、60Hz/132 50Hz/37.5、60Hz/45 3626 Left
HMTR075-38L40RB 40 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/159、60Hz/132 50Hz/37.5、60Hz/45 3626 Right
HMTR075-38L50LB 50 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/198、60Hz/165 50Hz/30、60Hz/36 4116 Left
HMTR075-38L50RB 50 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/198、60Hz/165 50Hz/30、60Hz/36 4116 Right
HMTR075-38L5LB 5 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/20.6、60Hz/17.6 50Hz/300、60Hz/360 1519 Left
HMTR075-38L5RB 5 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/20.6、60Hz/17.6 50Hz/300、60Hz/360 1519 Right
HMTR075-38L5TB 5 With brake 38 0.75 Top runner motor Foot mounting 200 3-phase 50Hz/20.6、60Hz/17.6 50Hz/300、60Hz/360 1519 Both sides
HMTR075-38U10SB 10 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/42.1、60Hz/34.3 50Hz/150、60Hz/180 2205 One side
HMTR075-38U10TB 10 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/42.1、60Hz/34.3 50Hz/150、60Hz/180 2205 Both sides
HMTR075-38U15SB 15 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/62.7、60Hz/51.9 50Hz/100、60Hz/120 2401 One side
HMTR075-38U15TB 15 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/62.7、60Hz/51.9 50Hz/100、60Hz/120 2401 Both sides
HMTR075-38U20SB 20 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/83.3、60Hz/69.6 50Hz/75、60Hz/90 2646 One side
HMTR075-38U20TB 20 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/83.3、60Hz/69.6 50Hz/75、60Hz/90 2646 Both sides
HMTR075-38U25SB 25 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/104、60Hz/87.2 50Hz/60、60Hz/72 2891 One side
HMTR075-38U25TB 25 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/104、60Hz/87.2 50Hz/60、60Hz/72 2891 Both sides
HMTR075-38U30SB 30 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/125、60Hz/104 50Hz/50、60Hz/60 3136 One side
HMTR075-38U30TB 30 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/125、60Hz/104 50Hz/50、60Hz/60 3136 Both sides
HMTR075-38U40SB 40 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/159、60Hz/132 50Hz/37.5、60Hz/45 3626 One side
HMTR075-38U50SB 50 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/198、60Hz/165 50Hz/30、60Hz/36 4116 One side
HMTR075-38U5SB 5 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/20.6、60Hz/17.6 50Hz/300、60Hz/360 1519 One side
HMTR075-38U5TB 5 With brake 38 0.75 Top runner motor Face mount type 200 3-phase 50Hz/20.6、60Hz/17.6 50Hz/300、60Hz/360 1519 Both sides

How to Order

Specify output power, reduction ratio, voltage and frequency, shaft arrangement, mounting method and brake. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
