TSUBAKI PX Finished Bore Timing Pulley P8M Type, PT28P8M

Description

TSUBAKI PT28P8M — PX Finished Bore Timing Pulley P8M Type, genuine TSUBAKI product.

Overview

This finished bore timing pulley from TSUBAKI is made for 8 mm pitch PX belts and is supplied with the bore, keyway and set screws already machined. That means it can be mounted directly on the shaft without additional machining. P8M pulleys are used in medium-power synchronous drives on machine tools, packaging equipment, pumps and conveyors.

Key Features

  • Bore, keyway and set screw holes pre-machined
  • 8 mm pitch profile for PX P8M belts
  • Ready to mount without extra machining
  • Flange options to keep belts tracking

Specifications

Part No. Shape No. of Teeth Type Dim. l (mm) Applicable Belt Width (mm) Tap Diameter Pitch Diameter (Dp) (Ømm) Bore Diameter d (Ømm) Dim. BL (mm) Dim. do (mm) Dim. Bw (mm) Key Kw×KH (mm)
PT28P8M15AF-H018N-J06D3M06 AF 28 Timing pulley 11 15 M6 71.3 18 - 69.93 22 6×2.8
PT28P8M15AF-H019N-J06D3M06 AF 28 Timing pulley 11 15 M6 71.3 19 - 69.93 22 6×2.8
PT28P8M15AF-H020N-J06D3M06 AF 28 Timing pulley 11 15 M6 71.3 20 - 69.93 22 6×2.8
PT28P8M15AF-H022N-J06D3M06 AF 28 Timing pulley 11 15 M6 71.3 22 - 69.93 22 6×2.8
PT28P8M15AF-H024N-J08D3M06 AF 28 Timing pulley 11 15 M6 71.3 24 - 69.93 22 8×3.3
PT28P8M15AF-H025N-J08D3M06 AF 28 Timing pulley 11 15 M6 71.3 25 - 69.93 22 8×3.3
PT28P8M15AF-H028N-J08D3M06 AF 28 Timing pulley 11 15 M6 71.3 28 - 69.93 22 8×3.3
PT28P8M15AF-H030N-J08D3M06 AF 28 Timing pulley 11 15 M6 71.3 30 - 69.93 22 8×3.3
PT28P8M15BF-H018N-J06D3M06 BF 28 Timing pulley 9 15 M6 71.3 18 39 69.93 22 6×2.8
PT28P8M15BF-H019N-J06D3M06 BF 28 Timing pulley 9 15 M6 71.3 19 39 69.93 22 6×2.8
PT28P8M15BF-H020N-J06D3M06 BF 28 Timing pulley 9 15 M6 71.3 20 39 69.93 22 6×2.8
PT28P8M15BF-H022N-J06D3M06 BF 28 Timing pulley 9 15 M6 71.3 22 39 69.93 22 6×2.8
PT28P8M15BF-H024N-J08D3M06 BF 28 Timing pulley 9 15 M6 71.3 24 39 69.93 22 8×3.3
PT28P8M15BF-H025N-J08D3M06 BF 28 Timing pulley 9 15 M6 71.3 25 39 69.93 22 8×3.3
PT28P8M15BF-H028N-J08D3M06 BF 28 Timing pulley 9 15 M6 71.3 28 39 69.93 22 8×3.3
PT28P8M15BF-H030N-J08D3M06 BF 28 Timing pulley 9 15 M6 71.3 30 39 69.93 22 8×3.3
PT28P8M25AF-H018N-J06D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 18 - 69.93 33 6×2.8
PT28P8M25AF-H019N-J06D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 19 - 69.93 33 6×2.8
PT28P8M25AF-H020N-J06D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 20 - 69.93 33 6×2.8
PT28P8M25AF-H022N-J06D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 22 - 69.93 33 6×2.8
PT28P8M25AF-H024N-J08D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 24 - 69.93 33 8×3.3
PT28P8M25AF-H025N-J08D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 25 - 69.93 33 8×3.3
PT28P8M25AF-H028N-J08D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 28 - 69.93 33 8×3.3
PT28P8M25AF-H030N-J08D3M06 AF 28 Timing pulley 16.5 25 M6 71.3 30 - 69.93 33 8×3.3
PT28P8M25BF-H018N-J06D3M06 BF 28 Timing pulley 9 25 M6 71.3 18 50 69.93 33 6×2.8
PT28P8M25BF-H019N-J06D3M06 BF 28 Timing pulley 9 25 M6 71.3 19 50 69.93 33 6×2.8
PT28P8M25BF-H020N-J06D3M06 BF 28 Timing pulley 9 25 M6 71.3 20 50 69.93 33 6×2.8
PT28P8M25BF-H022N-J06D3M06 BF 28 Timing pulley 9 25 M6 71.3 22 50 69.93 33 6×2.8
PT28P8M25BF-H024N-J08D3M06 BF 28 Timing pulley 9 25 M6 71.3 24 50 69.93 33 8×3.3
PT28P8M25BF-H025N-J08D3M06 BF 28 Timing pulley 9 25 M6 71.3 25 50 69.93 33 8×3.3
PT28P8M25BF-H028N-J08D3M06 BF 28 Timing pulley 9 25 M6 71.3 28 50 69.93 33 8×3.3
PT28P8M25BF-H030N-J08D3M06 BF 28 Timing pulley 9 25 M6 71.3 30 50 69.93 33 8×3.3

How to Order

Check tooth count, belt width, bore diameter, keyway standard and set screw specification. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

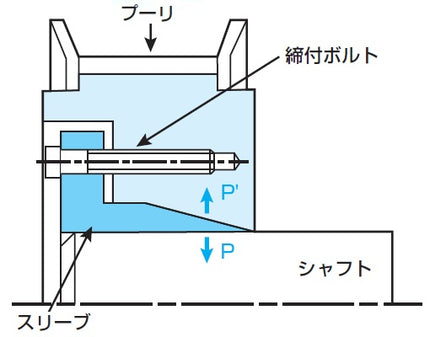

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
