TSUBAKI Cable Carrier TKC Type, TKC91H

Description

TSUBAKI TKC91H — Cable Carrier TKC Type, genuine TSUBAKI product.

Overview

The Tsubaki TKC cable carrier is a heavy-duty cable and hose carrier designed for large machines and long travel. It guides and protects moving cables, hoses and lines, preventing tangling and wear. It is used in machine tools, cranes, handling systems and large automated equipment.

Key Features

  • Heavy-duty construction for large machines
  • Guides cables and hoses safely
  • Wide inner widths available
  • Suitable for long travel lengths

Specifications

Part No. Class Operating Temp. Range (˚C) Compatible Body Type Mass (g/pc) Inner Width (mm) Material (Bracket) Max. Travel Speed (m/min)
TKC91H56W150-FUGA Fixed end -40～80 TKC91H56W150R 592 200 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W150-MUCRGA Moving end -40～80 TKC91H56W150R 691 200 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W150-MUGA Moving end -40～80 TKC91H56W150R 598 200 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W200-MUGA Moving end -40～80 TKC91H56W200R 666 200 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W250-MUCRGA Moving end -40～80 TKC91H56W200R 889 250 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W250-MUGA Moving end -40～80 TKC91H56W250R 736 250 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W300-FUGA Fixed end -40～80 TKC91H56W300R 798 300 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W300-MUCRGA Moving end -40～80 TKC91H56W300R 987 300 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W300-MUGA Moving end -40～80 TKC91H56W300R 804 300 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W350-FUCRGA Fixed end -40～80 TKC91H56W350R 1081 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W350-FUGA Fixed end -40～80 TKC91H56W350R 869 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W350-MUCRGA Moving end -40～80 TKC91H56W350R 1087 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W350-MUGA Moving end -40～80 TKC91H56W350R 874 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W400-FUCRGA Fixed end -40～80 TKC91H56W400R 1179 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W400-FUGA Fixed end -40～80 TKC91H56W400R 936 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W400-MUCRGA Moving end -40～80 TKC91H56W400R 1185 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H56W400-MUGA Moving end -40～80 TKC91H56W400R 942 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W150-MUCRGA Moving end -40～80 TKC91H80W150R 993 150 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W150-MUGA Moving end -40～80 TKC91H80W150R 900 150 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W200-MUCRGA Moving end -40～80 TKC91H80W200R 1091 200 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W200-MUGA Moving end -40～80 TKC91H80W200R 968 200 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W250-FUCRGA Fixed end -40～80 TKC91H80W250R 1223 250 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W250-FUGA Fixed end -40～80 TKC91H80W250R 1070 250 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W250-MUCRGA Moving end -40～80 TKC91H80W250R 1191 250 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W250-MUGA Moving end -40～80 TKC91H80W250R 1038 250 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W300-FUGA Fixed end -40～80 TKC91H80W300R 1138 300 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W300-MUCRGA Moving end -40～80 TKC91H80W300R 1289 300 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W350-FUCRGA Fixed end -40～80 TKC91H80W350R 1421 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W350-FUGA Fixed end -40～80 TKC91H80W350R 1208 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W350-MUCRGA Moving end -40～80 TKC91H80W350R 1389 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W350-MUGA Moving end -40～80 TKC91H80W350R 1176 350 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W400-FUCRGA Fixed end -40～80 TKC91H80W400R 1519 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W400-FUGA Fixed end -40～80 TKC91H80W400R 1276 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)
TKC91H80W400-MUGA Moving end -40～80 TKC91H80W400R 1244 400 Engineering plastic (black) + steel bush included 300 (150 m/min with support rollers)

How to Order

Specify inner width, height, bending radius and bracket type. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

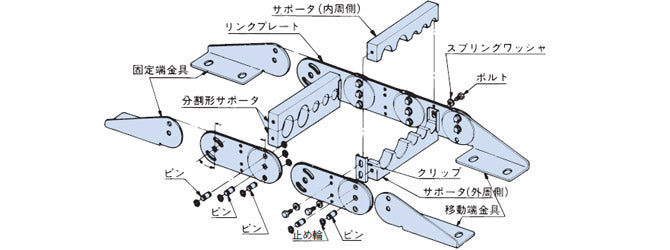

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
