Description
TSUBAKI EWJ25E — Worm Power Drive EWJ Series (Without Motor), genuine TSUBAKI product.
Overview
The Tsubaki Worm Power Drive EWJ series is a worm gear reducer supplied without motor, providing a right-angle output with high reduction in a compact housing. Worm gearing offers smooth operation and some self-locking tendency at high ratios. It is used in conveyors, mixers and lifting equipment.
Key Features
- Right-angle worm gear reduction
- Compact housing
- Smooth and quiet operation
- Supplied without motor for flexible input
Specifications
| Part No. |
Reduction Ratio |
Size |
Type |
Model |
Shaft Arrangement |
| EWJ25E10L |
1/10 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E10LR |
1/10 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E10R |
1/10 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E15L |
1/15 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E15LR |
1/15 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E15R |
1/15 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E20L |
1/20 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E20LR |
1/20 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E20R |
1/20 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E25L |
1/25 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E25LR |
1/25 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E25R |
1/25 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E30L |
1/30 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E30LR |
1/30 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E30R |
1/30 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E40L |
1/40 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E40LR |
1/40 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E40R |
1/40 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E50L |
1/50 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E50LR |
1/50 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E50R |
1/50 |
25 |
Worm power drive |
EWJ |
R |
| EWJ25E60L |
1/60 |
25 |
Worm power drive |
EWJ |
L |
| EWJ25E60LR |
1/60 |
25 |
Worm power drive |
EWJ |
LR |
| EWJ25E60R |
1/60 |
25 |
Worm power drive |
EWJ |
R |
How to Order
Specify reduction ratio, input type, output shaft direction and mounting. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

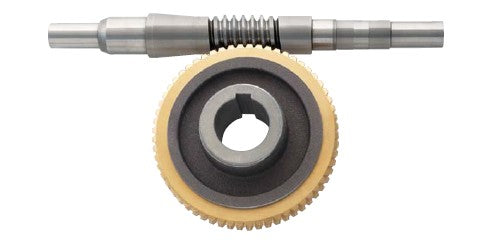

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
