TSUBAKI Echt Flex Coupling NEF Series (Single Type), NEF80S-N

Description

TSUBAKI NEF80S-N — Echt Flex Coupling NEF Series (Single Type), genuine TSUBAKI product.

Overview

The Tsubaki Echt Flex NEF Series is a disc-type flexible coupling that transmits torque through thin metal plate springs, giving zero backlash and high torsional rigidity. The single type uses one disc pack and absorbs angular misalignment and axial displacement. It is used to connect servo motors, stepping motors and encoders to ball screws and precision drives.

Key Features

  • Metal disc element with no backlash
  • High torsional stiffness for precise positioning
  • Absorbs angular misalignment and axial displacement
  • Finished bores for each shaft side

Specifications

Part No. Overall Length (mm) Mass (kg) Type Max. Speed (min-1r.p.m) Dim. H (mm) Max. Bore Diameter (mm) Pilot Bore Diameter (Ømm) Allowable Torque (N.m) Dim. E (mm) Dim. B (mm) Model No. P.C.D(mm)
NEF80S-NH32JD2-NH32JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH32JD2-NH35JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH32JD2-NH40JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH32JD2-NH42JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH32JD2-NH48JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH32JD2-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH32JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH35JD2-NH35JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH35JD2-NH40JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH35JD2-NH42JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH35JD2-NH48JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH35JD2-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH35JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH40JD2-NH40JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH40JD2-NH42JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH40JD2-NH48JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH40JD2-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH40JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH42JD2-NH42JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH42JD2-NH48JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH42JD2-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH42JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH48JD2-NH48JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH48JD2-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH48JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH50JD2-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH50JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NH55JD2-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH32JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH35JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH40JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH42JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH48JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH50JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NH55JD2 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80S 111
NEF80S-NR-NR 107.3 4.9 Disc type 12000 84 Hub[1]60 Hub[2]60 Hub[1]15 Hub[2]15 784 11.7 47.8 NEF80S 111

How to Order

Select the size by torque and speed, and specify the bore diameter and fastening type for both hubs. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

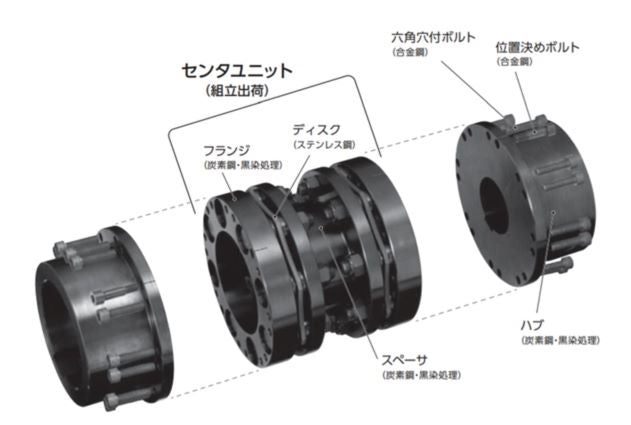

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
