TSUBAKI Echt Flex Coupling NEF Series (Spacer Type), NEF18W (Part 2)

Description

TSUBAKI NEF18W — Echt Flex Coupling NEF Series (Spacer Type), genuine TSUBAKI product.

Overview

The TSUBAKI Echt Flex Coupling NEF Series spacer type connects two shafts with a spacer between flexible disc elements. The disc packs absorb misalignment while transmitting torque with zero backlash. The spacer allows a longer distance between shaft ends for easier maintenance of pumps and motors.

Key Features

  • Zero backlash disc-type flexible element
  • Spacer allows extended shaft separation
  • Absorbs angular, parallel and axial misalignment

Specifications

Part No. Overall Length (mm) Mass (kg) Type Max. Speed (min-1r.p.m) Dim. H (mm) Max. Bore Diameter (mm) Pilot Bore Diameter (Ømm) Allowable Torque (N.m) Dim. E (mm) Dim. B (mm) Model No. N(mm) Dim. J (mm)
NEF18W-NH32JD2-NH32JD2 104.4 2.3 Disc type 18000 51 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NH32JD2-NH35JD2 104.4 2.3 Disc type 18000 51 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NH35JD2-KH38JD2 104.4 2.342 Disc type 18000 51 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NH35JD2-NH35JD2 104.4 2.3 Disc type 18000 51 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-KH38JD2 104.4 2.342 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH14JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH15JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH16JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH18JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH19JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH20JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH22JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH24JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH25JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH28JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH30JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH32JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NH35JD2 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]- Hub[1]12 Hub[2]- 176 8.3 28.7 NEF18W 38
NEF18W-NR-NR 104.4 2.3 Disc type 18000 51 Hub[1]35 Hub[2]35 Hub[1]12 Hub[2]12 176 8.3 28.7 NEF18W 38

How to Order

Specify the size, spacer length, and bore diameters for both hubs. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

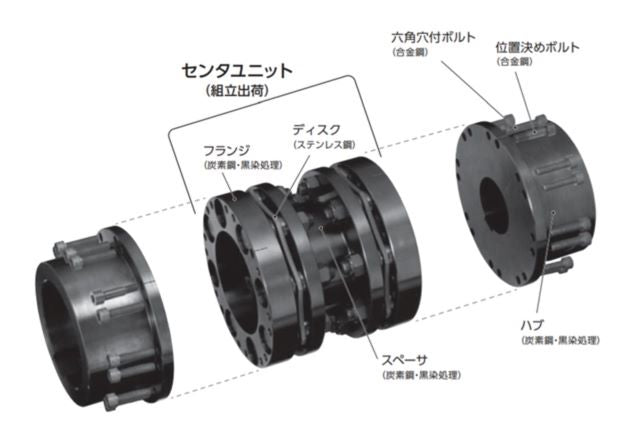

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
