TSUBAKI Echt Flex Coupling NEF Series (Spacer Type), NEF80W-N

Description

TSUBAKI NEF80W-N — Echt Flex Coupling NEF Series (Spacer Type), genuine TSUBAKI product.

Overview

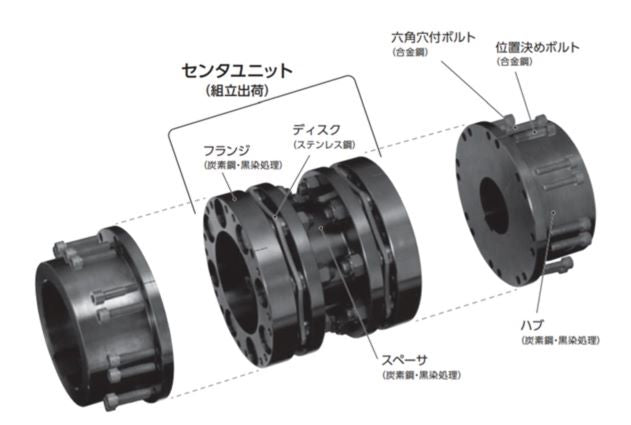

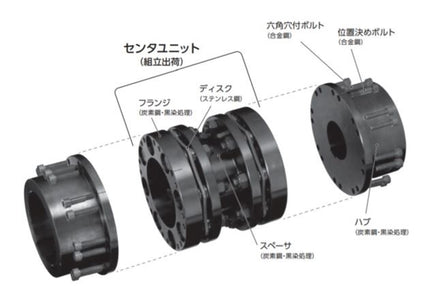

The TSUBAKI Echt Flex Coupling NEF Series spacer type connects two shafts with a spacer between flexible disc elements. The disc packs absorb misalignment while transmitting torque with zero backlash. The spacer allows a longer distance between shaft ends for easier maintenance of pumps and motors.

Key Features

  • Zero backlash disc-type flexible element
  • Spacer allows extended shaft separation
  • Absorbs angular, parallel and axial misalignment

Specifications

Part No. Overall Length (mm) Mass (kg) Type Max. Speed (min-1r.p.m) Dim. H (mm) Max. Bore Diameter (mm) Pilot Bore Diameter (Ømm) Allowable Torque (N.m) Dim. E (mm) Dim. B (mm) Model No. N(mm)
NEF80W-NH32JD2-NH32JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH32JD2-NH35JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH32JD2-NH40JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH32JD2-NH42JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH32JD2-NH48JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH32JD2-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH32JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH35JD2-NH35JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH35JD2-NH40JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH35JD2-NH42JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH35JD2-NH48JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH35JD2-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH35JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH40JD2-NH40JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH40JD2-NH42JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH40JD2-NH48JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH40JD2-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH40JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH42JD2-NH42JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH42JD2-NH48JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH42JD2-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH42JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH48JD2-NH48JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH48JD2-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH48JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH50JD2-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH50JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NH55JD2-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]- Hub[2]- Hub[1]- Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH32JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH35JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH40JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH42JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH48JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH50JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NH55JD2 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]- Hub[1]15 Hub[2]- 784 11.7 47.8 NEF80W 71
NEF80W-NR-NR 164.6 8.2 Disc type 12000 84 Hub[1]60 Hub[2]60 Hub[1]15 Hub[2]15 784 11.7 47.8 NEF80W 71

How to Order

Specify the size, spacer length, and bore diameters for both hubs. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
