Description
TSUBAKI MZ — Cam Clutch MZ Series, genuine TSUBAKI product.
Overview
The Tsubaki Cam Clutch MZ series is a one-way clutch with built-in bearings, used for overrunning and backstopping in heavy-duty drives. Cams engage to transmit torque in one direction while allowing free rotation in the other. It is common in conveyors, pumps and industrial gear drives.
Key Features
- Built-in bearings for radial support
- High torque capacity
- Overrunning or backstopping function
- Robust construction for heavy duty

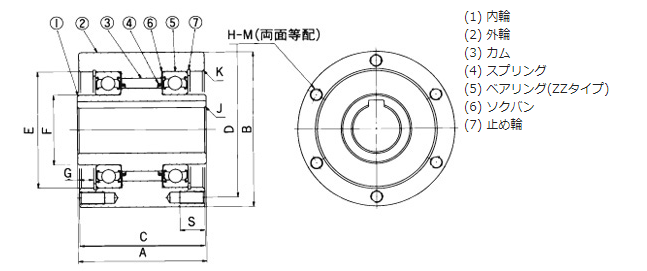

Specifications
| Part No. |
Width (mm) |
Mass (kg) |
Bore Diameter (mm) |
Motor Type |
Chamfer (mm) |
Rotational Speed (r/min) |
Outer Diameter B (Ømm) |
Boss Diameter F (mm) |
Spigot Diameter E (mm) |
Spigot Depth G (mm) |
| MZ15 |
(Inner A) 62, (Outer C) 60 |
1.4 |
(Diameter H7) 15, (keyway) 5X2.3, (chamfer J) 0.8 |
Clutch |
(K)1.3 |
(Inner) 2200 |
(Outer) 900 |
68 |
(Inner) 25 |
(M6)47 |
| MZ45 |
(Inner A) 92, (Outer C) 90 |
6.2 |
(Diameter H7) 45, (keyway) 14X3.8, (chamfer J) 1.3 |
Clutch |
(K)1.3 |
(Inner) 1700 |
(Outer) 300 |
125 |
(Inner) 60 |
(M6)95 |
| MZ60 |
(Inner A) 102, (Outer C) 100 |
10.2 |
(Diameter H7) 60, (keyway) 18X4.4, (chamfer J) 1.5 |
Clutch |
(K)1.3 |
(Inner) 1600 |
(Outer) 250 |
155 |
(Inner) 80 |
(M6)125 |
How to Order
Confirm bore size, torque capacity and installation orientation. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
