TSUBAKI Torque Limiter

Description

TSUBAKI TL — Torque Limiter, genuine TSUBAKI product.

Overview

The TSUBAKI torque limiter protects drives from overload by slipping when torque exceeds a set value. A sprocket, pulley or gear is clamped between friction facings by an adjustable spring, so the slip torque can be tuned. When a jam occurs, the limiter slips instead of letting chains, gears or motors fail, then resumes once cleared.

Key Features

  • Adjustable slip torque via spring nut

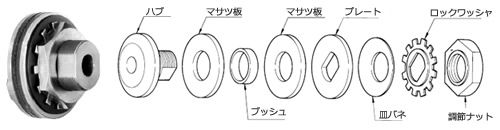

  • Mounts sprockets, pulleys or gears between friction facings
  • Resets automatically after overload is removed

Specifications

Part No. Length (mm) Model Type Mass (kg) Type Type Hole Diameter (Ømm) Max. Speed (min-1r.p.m) Dim. l (mm) Pilot Bore Diameter (Ømm) Outer Diameter D (Ømm) Dim. T (mm) Size S (mm)
TL200-1 [Bush] 3.8~6.0 (Friction plate) TL200A, (disc spring) TL200S, 1 pc 0.2 Without bush Overload protection device [Center member] 30 (+0.03~0) 1800 29 7 50 2.5 7 (max)
TL200-1-B3.8 [Bush] 3.8~6.0 0.2 With bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL200-1-B6.0 [Bush] 3.8~6.0 0.2 With bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL200-1L [Bush] 3.8~6.0 0.2 Without bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL200-1L-B3.8 [Bush] 3.8~6.0 0.2 With bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL200-1L-B6.0 [Bush] 3.8~6.0 0.2 With bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL200-2 [Bush] 3.8~6.0 (Friction plate) TL200A, (disc spring) TL200S, 2 pcs 0.2 Without bush Overload protection device [Center member] 30 (+0.03~0) 1800 29 7 50 2.5 7 (max)
TL200-2-B3.8 [Bush] 3.8~6.0 0.2 With bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL200-2-B6.0 [Bush] 3.8~6.0 0.2 With bush Overload protection device [Center member] 30 (+0.03~0) 1800 6.5 7 50 2.5 7 (max)
TL250-1 [Bush] 4.5~6.5 (Friction plate) TL250A, (disc spring) TL250S, 1 pc 0.6 Without bush Overload protection device [Center member] 41 (+0.05~0) 1800 48 10 65 3.2 9 (max)
TL250-1-B4.5 [Bush] 4.5~6.5 0.6 With bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL250-1-B6.5 [Bush] 4.5~6.5 0.6 With bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL250-1L [Bush] 4.5~6.5 0.6 Without bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL250-1L-B4.5 [Bush] 4.5~6.5 0.6 With bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL250-1L-B6.5 [Bush] 4.5~6.5 0.6 With bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL250-2 [Bush] 4.5~6.5 (Friction plate) TL250A, (disc spring) TL250S, 2 pcs 0.6 Without bush Overload protection device [Center member] 41 (+0.05~0) 1800 48 10 65 3.2 9 (max)
TL250-2-B4.5 [Bush] 4.5~6.5 0.6 With bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL250-2-B6.5 [Bush] 4.5~6.5 0.6 With bush Overload protection device [Center member] 41 (+0.05~0) 1800 16 10 65 3.2 9 (max)
TL350-1-B4.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-1-B6.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-1-B9.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-1L [Bush] 4.5~9.5 1.2 Without bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-1L-B4.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-1L-B6.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-1L-B9.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-2 [Bush] 4.5~9.5 (Friction plate) TL350A, (disc spring) TL350S, 2 pcs 1.2 Without bush Overload protection device [Center member] 49 (+0.05~0) 1800 62 17 89 3.2 16 (max)
TL350-2-B4.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-2-B6.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL350-2-B9.5 [Bush] 4.5~9.5 1.2 With bush Overload protection device [Center member] 49 (+0.05~0) 1800 19 17 89 3.2 16 (max)
TL500-1 [Bush] 6.5~9.5 (Friction plate) TL500A, (disc spring) TL500S, 1 pc 3.5 Without bush Overload protection device [Center member] 74 (+0.05~0) 1800 76 20 127 3.2 16 (max)
TL500-1-B6.5 [Bush] 6.5~9.5 3.5 With bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL500-1-B9.5 [Bush] 6.5~9.5 3.5 With bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL500-1L [Bush] 6.5~9.5 3.5 Without bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL500-1L-B6.5 [Bush] 6.5~9.5 3.5 With bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL500-1L-B9.5 [Bush] 6.5~9.5 3.5 With bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL500-2 [Bush] 6.5~9.5 (Friction plate) TL500A, (disc spring) TL500S, 2 pcs 3.5 Without bush Overload protection device [Center member] 74 (+0.05~0) 1800 76 20 127 3.2 16 (max)
TL500-2-B6.5 [Bush] 6.5~9.5 3.5 With bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL500-2-B9.5 [Bush] 6.5~9.5 3.5 With bush Overload protection device [Center member] 74 (+0.05~0) 1800 22 20 127 3.2 16 (max)
TL700-1 [Bush] 9.5~12.5 (Friction plate) TL700A, (disc spring) TL700S, 1 pc 8.4 Without bush Overload protection device [Center member] 105 (+0.05~0) 1800 98 30 178 3.2 29 (max)
TL700-1-B12.5 [Bush] 9.5~12.5 8.4 With bush Overload protection device [Center member] 105 (+0.05~0) 1800 24 30 178 3.2 29 (max)
TL700-1-B9.5 [Bush] 9.5~12.5 8.4 With bush Overload protection device [Center member] 105 (+0.05~0) 1800 24 30 178 3.2 29 (max)
TL700-2 [Bush] 9.5~12.5 (Friction plate) TL700A, (disc spring) TL700S, 2 pcs 8.4 Without bush Overload protection device [Center member] 105 (+0.05~0) 1800 98 30 178 3.2 29 (max)
TL700-2-B12.5 [Bush] 9.5~12.5 8.4 With bush Overload protection device [Center member] 105 (+0.05~0) 1800 24 30 178 3.2 29 (max)
TL700-2-B9.5 [Bush] 9.5~12.5 8.4 With bush Overload protection device [Center member] 105 (+0.05~0) 1800 24 30 178 3.2 29 (max)

How to Order

Confirm the size, bore range, required slip torque and the hub component to be mounted. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

TSUBAKI TL — Torque Limiter, genuine TSUBAKI product.OverviewThe TSUBAKI torque limiter protects drives from overload by slipping when torque exceeds... Read more

SKU: TL200-1

$83.07 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
