TSUBAKI EPR — Power Rigid Coupling, genuine TSUBAKI product.
Overview

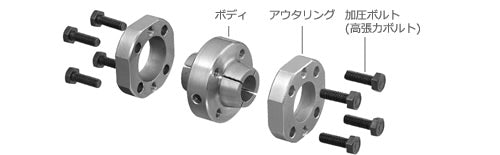

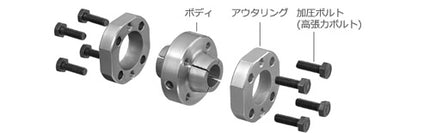

The Tsubaki Power Rigid Coupling joins two shafts in precise, rigid alignment using a clamping design, transmitting torque with no backlash and no flexibility. It is used where shafts are accurately aligned and torsional stiffness is a priority, such as connecting drive shafts in line or linking ball screws and precision axes.
Key Features
- Rigid connection with no backlash
- Clamping design for keyless shaft fixing
- High torsional stiffness
- Bore combinations for different shaft sizes
Specifications
| Part No. |
Overall Length (mm) |
Mass (kg) |
Type |
Type |
Max. Speed (min-1r.p.m) |
Dim. l (mm) |
Thread Diameter |
Dim. F (mm) |
Allowable Torque (N.m) |
Dim. E (mm) |
Dim. B (mm) |
Dim. C (mm) |
| EPR50-16-11T |
40 |
0.47 |
Tapered shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR50-16-16 |
40 |
0.43 |
Straight shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR50-16-20 |
40 |
0.43 |
Straight shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR50-20-11T |
40 |
0.47 |
Tapered shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR50-20-20 |
40 |
0.43 |
Straight shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR50-20-22 |
40 |
0.43 |
Straight shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR50-22-11T |
40 |
0.47 |
Tapered shaft |
Rigid type |
15000 |
38 |
M6 |
1.5 |
90～139 |
20 |
11 |
15 |
| EPR58-20-16T |
52 |
0.88 |
Tapered shaft |
Rigid type |
13000 |
45 |
M6 |
1.5 |
78～188 |
26 |
15 |
19 |
| EPR58-20-25 |
52 |
0.79 |
Straight shaft |
Rigid type |
13000 |
45 |
M6 |
1.5 |
78～188 |
26 |
15 |
19 |
| EPR58-22-16T |
52 |
0.88 |
Tapered shaft |
Rigid type |
13000 |
45 |
M6 |
1.5 |
78～188 |
26 |
15 |
19 |
| EPR58-22-25 |
52 |
0.79 |
Straight shaft |
Rigid type |
13000 |
45 |
M6 |
1.5 |
78～188 |
26 |
15 |
19 |
| EPR58-25-16T |
52 |
0.88 |
Tapered shaft |
Rigid type |
13000 |
45 |
M6 |
1.5 |
78～188 |
26 |
15 |
19 |
| EPR58-25-25 |
52 |
0.79 |
Straight shaft |
Rigid type |
13000 |
45 |
M6 |
1.5 |
78～188 |
26 |
15 |
19 |
| EPR68-25-30 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
| EPR68-25-35 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
| EPR68-28-35 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
| EPR68-30-30 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
| EPR68-30-35 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
| EPR68-32-35 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
| EPR68-35-35 |
52 |
0.97 |
Straight shaft |
Rigid type |
12000 |
55 |
M6 |
1.5 |
144～454 |
26 |
15 |
19 |
How to Order
Specify the bore diameters for both shafts and confirm torque and speed requirements. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
