Description
TSUBAKI PL — Power-Lock AS-KP Series, genuine TSUBAKI product.
Overview

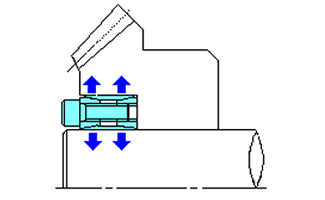

The TSUBAKI Power-Lock AS-KP Series is a keyless locking device with a surface treatment for improved rust resistance. Like other Power-Lock units, tapered rings create friction between shaft and hub when the bolts are tightened. It is used in drives exposed to moisture, such as food processing and outdoor machines.
Key Features
- Rust-resistant surface treatment
- Keyless connection for hubs and shafts
- Easy positioning and removal
Specifications
| Part No. |
Shaft Diameter (Ømm) |
Outer Diameter (Ømm) |
Applicable Shaft Diameter (Ømm) |
Transmission Torque |
Allowable Transmission Torque (N·m) |
Transmission Torque (N·m[kgf·m) |
Allowable Thrust (N) |
Boss-Side Pressure (MPa[kgf/mm2) |
Shaft-Side Pressure (MPa) |
Bolt Tightening Torque (N·m) |
Centering Function |
| PL019-047AS-KP |
|
47 |
19 |
|
245 |
|
26500 |
85 |
210 |
16.7 |
None |
| PL019X047AS-KP |
19 |
47 |
|
245N/m |
|
|
|
|
|
|
|
| PL020-047AS-KP |
|
47 |
20 |
|
265 |
|
26500 |
85 |
199 |
16.7 |
None |
| PL020X047AS-KP |
20 |
47 |
|
265N/m |
|
|
|
|
|
|
|
| PL022-047AS-KP |
|
47 |
22 |
|
294 |
|
26500 |
85 |
181 |
16.7 |
None |
| PL022X047AS-KP |
22 |
47 |
|
294N/m |
|
|
|
|
|
|
|
| PL024-050AS-KP |
|
50 |
24 |
|
402 |
|
33300 |
101 |
211 |
16.7 |
None |
| PL024X050AS-KP |
24 |
50 |
|
402N/m |
|
|
|
|
|
|
|
| PL025-050AS-KP |
|
50 |
25 |
|
421 |
|
33300 |
101 |
203 |
16.7 |
None |
| PL025X050AS-KP |
25 |
50 |
|
421N/m |
|
|
|
|
|
|
|
| PL028-055AS-KP |
|
55 |
28 |
|
470 |
|
33300 |
92 |
180 |
16.7 |
None |
| PL028X055AS-KP |
28 |
55 |
|
470N/m |
|
|
|
|
|
|
|
| PL030-055AS-KP |
|
55 |
30 |
|
510 |
|
33300 |
92 |
169 |
16.7 |
None |
| PL030X055AS-KP |
30 |
55 |
|
510N/m |
|
|
|
|
|
|
|
| PL032-060AS-KP |
|
60 |
32 |
|
676 |
|
42100 |
106 |
198 |
16.7 |
None |
| PL032X060AS-KP |
32 |
60 |
|
676N/m |
|
|
|
|
|
|
|
| PL035-060AS-KP |
|
60 |
35 |
|
745 |
|
42100 |
106 |
181 |
16.7 |
None |
| PL035X060AS-KP |
35 |
60 |
|
745N/m |
|
|
|
|
|
|
|
| PL038-065AS-KP |
|
65 |
38 |
|
892 |
|
47000 |
107 |
183 |
16.7 |
None |
| PL038X065AS-KP |
38 |
65 |
|
892N/m |
|
|
|
|
|
|
|
| PL040-065AS-KP |
|
65 |
40 |
|
941 |
|
47000 |
107 |
174 |
16.7 |
None |
| PL040X065AS-KP |
40 |
65 |
|
941N/m |
|
|
|
|
|
|
|
| PL042-075AS-KP |
|
75 |
42 |
|
1490 |
|
70600 |
121 |
214 |
40.2 |
None |
| PL042X075AS-KP |
42 |
75 |
|
1490N/m |
|
|
|
|
|
|
|
| PL045-075AS-KP |
|
75 |
45 |
|
1600 |
|
70600 |
121 |
200 |
40.2 |
None |
| PL045X075AS-KP |
45 |
75 |
|
1600N/m |
|
|
|
|
|
|
|
| PL048-080AS-KP |
|
80 |
48 |
|
1700 |
|
70600 |
113 |
188 |
40.2 |
None |
| PL048X080AS-KP |
48 |
80 |
|
1700N/m |
|
|
|
|
|
|
|
| PL050-080AS-KP |
|
80 |
50 |
|
1770 |
|
70600 |
113 |
180 |
40.2 |
None |
| PL050X080AS-KP |
50 |
8 |
|
1770N/m |
|
|
|
|
|
|
|
| PL055-085AS-KP |
|
85 |
55 |
|
2390 |
|
86200 |
130 |
201 |
40.2 |
None |
| PL055X085AS-KP |
55 |
85 |
|
2390N/m |
|
|
|
|
|
|
|
| PL060-090AS-KP |
|
90 |
60 |
|
2610 |
|
86200 |
123 |
184 |
40.2 |
None |
| PL060X090AS-KP |
60 |
90 |
|
|
|
2610[266] |
|
|
|
|
|
| PL065-095AS-KP |
|
95 |
65 |
|
3090 |
|
94100 |
126 |
184 |
40.2 |
None |
| PL065X095AS-KP |
65 |
95 |
|
3090N/m |
|
|
|
|
|
|
|
| PL070-110AS-KP |
|
110 |
70 |
|
4800 |
|
138000 |
133 |
210 |
81.3 |
None |
| PL070X110AS-KP |
70 |
110 |
|
4800N/m |
|
|
|
|
|
|
|
| PL075-115AS-KP |
|
115 |
75 |
|
5190 |
|
138000 |
127 |
196 |
81.3 |
None |
| PL075X115AS-KP |
75 |
115 |
|
5190N/m |
|
|
|
|
|
|
|
| PL080-120AS-KP |
|
120 |
80 |
|
5490 |
|
138000 |
123 |
184 |
81.3 |
None |
| PL080X120AS-KP |
80 |
120 |
|
5490N/m |
|
|
|
|
|
|
|
| PL085-125AS-KP |
|
125 |
85 |
|
6370 |
|
150000 |
128 |
189 |
81.3 |
None |
| PL085X125AS-KP |
85 |
125 |
|
6370N/m |
|
|
|
|
|
|
|
| PL090X130AS-KP |
90 |
130 |
|
6760N/m |
|
|
|
|
|
|
|
| PL095X135AS-KP |
95 |
135 |
|
7740N/m |
|
|
|
|
|
|
|
| PL100X145AS-KP |
100 |
145 |
|
10000N/m |
|
|
|
|
|
|
|
| PL110X155AS-KP |
110 |
155 |
|
|
|
11100[1130] |
|
|
|
|
|
| PL120X165AS-KP |
120 |
165 |
|
|
|
13100[1340] |
|
|
|
|
|
| PL130X180AS-KP |
130 |
180 |
|
|
|
17800[1820] |
|
|
|
|
|
| PL140X190AS-KP |
140 |
190 |
|
|
|
20500[2090] |
|
|
|
|
|
| PL150X200AS-KP |
150 |
200 |
|
|
|
24700[2520] |
|
|
|
|
|
| PL160X210AS-KP |
160 |
210 |
|
|
|
27700[2830] |
|
|
|
|
|
| PL170X225AS-KP |
170 |
225 |
|
|
|
34100[3480] |
|
|
|
|
|
| PL180X235AS-KP |
180 |
235 |
|
|
|
38400[3920] |
|
|
|
|
|
| PL190X250AS-KP |
190 |
250 |
|
|
|
47600[4860] |
|
|
|
|
|
| PL200X260AS-KP |
200 |
260 |
|
|
|
52700[5380] |
|
|
|
|
|
| PL220X285AS-KP |
220 |
285 |
|
|
|
69100[7050] |
|
|
|
|
|
| PL240X305AS-KP |
240 |
305 |
|
|
|
83800[8550] |
|
|
|
|
|
| PL260X325AS-KP |
260 |
325 |
|
|
|
104000[10600] |
|
|
|
|
|
| PL280X355AS-KP |
280 |
355 |
|
|
|
129000[13200] |
|
|
|
|
|
| PL300X375AS-KP |
300 |
375 |
|
|
|
151000[15400] |
|
|
|
|
|
How to Order
Confirm shaft diameter, hub bore and torque requirement. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.
Product image is representative of the TSUBAKI series; appearance varies by size and model.
