TSUBAKI Power-Lock AS Series - PL075-115AS

Description

TSUBAKI PL — Power-Lock AS Series, genuine TSUBAKI product.

Overview

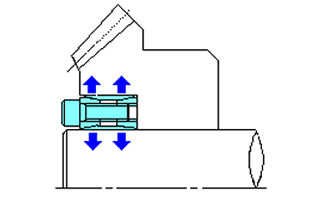

The TSUBAKI Power-Lock AS Series is a keyless shaft locking device that fixes pulleys, sprockets, gears and couplings to a shaft by friction. Tightening the clamping bolts pulls tapered rings together, expanding against the hub bore and gripping the shaft. Because no keyway is needed, it allows fine positioning and backlash-free connection in general machine drives.

Key Features

  • Keyless, backlash-free hub-to-shaft connection
  • Hub can be positioned freely in axial and rotational direction
  • Installed and released with standard hand tools
  • Sizes designated by shaft diameter and outer diameter

Specifications

Part No. Outer Diameter (Ømm) Applicable Shaft Diameter (Ømm) Allowable Transmission Torque (N·m) Allowable Thrust (N) Boss-Side Pressure (MPa[kgf/mm2) Shaft-Side Pressure (MPa) Bolt Tightening Torque (N·m) Centering Function
PL075-115AS 115 75 5880 159000 147 225 81.3 None
PL080-120AS 120 80 6270 159000 141 212 81.3 None
PL085-125AS 125 85 7350 173000 148 217 81.3 None
PL090-130AS 130 90 7740 173000 142 205 81.3 None
PL095-135AS 135 95 8920 187000 148 211 81.3 None
PL100-145AS 145 100 11560 231000 147 213 142 None
PL110-155AS 155 110 12600 231000 137 193 142 None
PL120-165AS 165 120 15100 252000 140 193 142 None
PL130-180AS 180 130 20500 316000 137 190 142 None
PL140-190AS 190 140 23500 336000 139 188 142 None
PL160-210AS 210 160 31900 400000 149 196 142 None
PL170-225AS 225 170 39200 462000 136 180 225 None
PL180-235AS 235 180 44100 491000 139 181 225 None
PL200-260AS 260 200 60600 606000 129 169 225 None

How to Order

Confirm the shaft diameter, hub bore diameter and required transmissible torque. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

Product image is representative of the TSUBAKI series; appearance varies by size and model.

About TSUBAKI

Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

Ordering & Shipping

  • Genuine TSUBAKI product sourced through Korean distribution
  • Ships worldwide from South Korea by FedEx International Priority Express
  • Lead time varies by model; please inquire for exact delivery
  • Import duties and taxes are payable by the recipient
  • Bulk and trade pricing available on request
Product form

TSUBAKI PL — Power-Lock AS Series, genuine TSUBAKI product.OverviewThe TSUBAKI Power-Lock AS Series is a keyless shaft locking device that... Read more

SKU: PL075-115AS

$152.30 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    TSUBAKI PL — Power-Lock AS Series, genuine TSUBAKI product.

    Overview

    The TSUBAKI Power-Lock AS Series is a keyless shaft locking device that fixes pulleys, sprockets, gears and couplings to a shaft by friction. Tightening the clamping bolts pulls tapered rings together, expanding against the hub bore and gripping the shaft. Because no keyway is needed, it allows fine positioning and backlash-free connection in general machine drives.

    Key Features

    • Keyless, backlash-free hub-to-shaft connection
    • Hub can be positioned freely in axial and rotational direction
    • Installed and released with standard hand tools
    • Sizes designated by shaft diameter and outer diameter

    Specifications

    Part No. Outer Diameter (Ømm) Applicable Shaft Diameter (Ømm) Allowable Transmission Torque (N·m) Allowable Thrust (N) Boss-Side Pressure (MPa[kgf/mm2) Shaft-Side Pressure (MPa) Bolt Tightening Torque (N·m) Centering Function
    PL075-115AS 115 75 5880 159000 147 225 81.3 None
    PL080-120AS 120 80 6270 159000 141 212 81.3 None
    PL085-125AS 125 85 7350 173000 148 217 81.3 None
    PL090-130AS 130 90 7740 173000 142 205 81.3 None
    PL095-135AS 135 95 8920 187000 148 211 81.3 None
    PL100-145AS 145 100 11560 231000 147 213 142 None
    PL110-155AS 155 110 12600 231000 137 193 142 None
    PL120-165AS 165 120 15100 252000 140 193 142 None
    PL130-180AS 180 130 20500 316000 137 190 142 None
    PL140-190AS 190 140 23500 336000 139 188 142 None
    PL160-210AS 210 160 31900 400000 149 196 142 None
    PL170-225AS 225 170 39200 462000 136 180 225 None
    PL180-235AS 235 180 44100 491000 139 181 225 None
    PL200-260AS 260 200 60600 606000 129 169 225 None

    How to Order

    Confirm the shaft diameter, hub bore diameter and required transmissible torque. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

    Product image is representative of the TSUBAKI series; appearance varies by size and model.

    About TSUBAKI

    Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.

    Ordering & Shipping

    • Genuine TSUBAKI product sourced through Korean distribution
    • Ships worldwide from South Korea by FedEx International Priority Express
    • Lead time varies by model; please inquire for exact delivery
    • Import duties and taxes are payable by the recipient
    • Bulk and trade pricing available on request
