Description
TSUBAKI ED — Miter Gearbox, genuine TSUBAKI product.
Overview
The Tsubaki miter gearbox is a right-angle gear unit using bevel gears with a 1:1 ratio to change shaft direction by 90 degrees without changing speed. Shaft arrangement options allow outputs on one or both sides. It is used in line shaft drives, conveyors, screw jack systems and machinery needing direction change.
Key Features
- Right-angle drive with 1:1 ratio
- Bevel gear design
- Multiple shaft arrangement options
- Compact housing for machine mounting
Specifications
| Part No. |
Reduction Ratio |
Shaft Diameter (Ømm) |
| ED2M-1-L-O-Y |
1 |
15 |
| ED2M-1-L-Y |
1 |
15 |
| ED2M-1-LR-O-Y |
1 |
15 |
| ED2M-1-LR-Y |
1 |
15 |
| ED2M-1-R-O-Y |
1 |
15 |
| ED2M-1-R-Y |
1 |
15 |
| ED4M-1-L-O-Y |
1 |
19 |
| ED4M-1-L-Y |
1 |
19 |
| ED4M-1-LR-O-Y |
1 |
19 |
| ED4M-1-LR-Y |
1 |
19 |
| ED4M-1-R-O-Y |
1 |
19 |
| ED4M-1-R-Y |
1 |
19 |
| ED6M-1-L-O-Y |
1 |
25 |
| ED6M-1-L-Y |
1 |
25 |
| ED6M-1-LR-O-Y |
1 |
25 |
| ED6M-1-R-Y |
1 |
25 |
How to Order
Specify size, shaft diameter, shaft arrangement and rotation direction. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

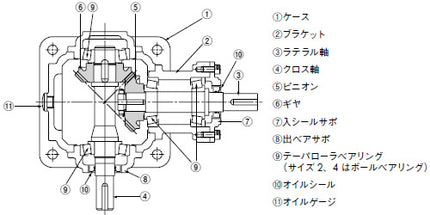

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
