Description
TSUBAKI TTU — Stainless Steel Top Chain TTU Type (Curved Conveying), genuine TSUBAKI product.
Overview
Tsubaki TTU type stainless steel top chain is a flat-top conveyor chain with a side-flexing design that allows the conveyor to curve. Its stainless steel plates provide a hard, wear-resistant surface for carrying bottles, cans and containers. It is common in beverage filling, food processing and packaging lines where wet conditions are present.
Key Features
- Side-flexing design for curved conveyors
- Stainless steel top plates resist corrosion and wear
- Flat surface for stable product transport
- Supplied per length for line assembly
Specifications
| Part No. |
Material (Body) |
Type |
Type |
Pitch (mm) |
No. of Strands |
Top Plate (mm) |
Max. Allowable Tension (kN) |
| TTU1143-N-L |
Stainless steel |
Per link |
Vertical conveyor chain |
38.1 |
1 |
114.3 |
2.16 |
| TTU1905-N-L |
Stainless steel |
Per link |
Vertical conveyor chain |
38.1 |
1 |
190.5 |
2.16 |
| TTU826-N-L |
Stainless steel |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
2.16 |
How to Order
Specify top plate width, chain length and the matching sprockets and guide rails. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

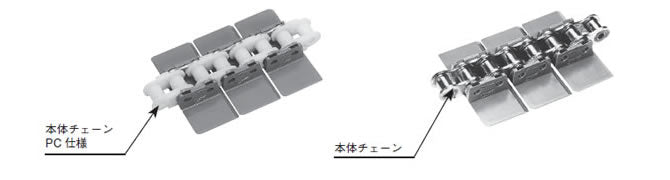

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
