Description
TSUBAKI BTC4-500-M — Plastic Modular Chain BTC4-M Type, genuine TSUBAKI product.
Overview
The Tsubaki BTC4-M is a plastic modular chain, also called a modular belt, built from injection-molded plastic modules joined by rods into a continuous wide conveying surface. Unlike narrow top chain, it can be assembled to the width of the conveyor. It is used in food processing, packaging and general product conveying where a wide, washable surface is needed.
Key Features
- Modules assembled to the required conveyor width
- Plastic construction runs without lubrication
- Easy to clean for food-related lines
- Damaged modules replaceable individually
Specifications
| Part No. |
Material (Body) |
Type |
Type |
Pitch (mm) |
Max. Allowable Tension (kN) |
| BTC4-500-M-L |
Engineering plastic |
Per link |
Vertical conveyor chain |
12.7 |
0.49 |
| BTC4-500-M-LFB-L |
Engineering plastic |
Per link |
Vertical conveyor chain |
12.7 |
0.49 |
| BTC4-500-M-LFG-L |
Engineering plastic |
Per link |
Vertical conveyor chain |
12.7 |
0.49 |
| BTC4-500-M-LFW-L |
Engineering plastic |
Per link |
Vertical conveyor chain |
12.7 |
0.49 |
| BTC4-500-M-MWS-L |
Engineering plastic |
Per link |
Vertical conveyor chain |
12.7 |
0.49 |
How to Order
Specify the module type, belt width, length and material or friction grade indicated by the suffix code. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

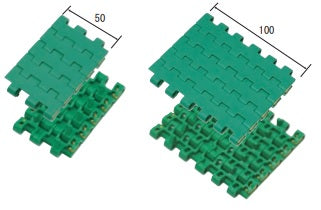

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
