Description
TSUBAKI TP-36AK1 — Plastic Top Chain TP-36AK Type (Curved Conveying), genuine TSUBAKI product.
Overview
The Tsubaki TP-36AK is a plastic top chain designed for curved conveying, allowing the chain to travel around horizontal bends while carrying containers on its flat top plates. It is used in bottling, canning and packaging lines with curved layouts. Material and lubrication-free options support quiet running on curved conveyor guides.
Key Features
- Designed for horizontal curve conveying
- Flat top plates for stable container transport
- Plastic construction runs quietly
- Low-friction materials available
Specifications
| Part No. |
Material (Body) |
Type |
Type |
Pitch (mm) |
No. of Strands |
Inner Link Inner Width (mm) |
Top Plate (mm) |
Max. Allowable Tension (kN) |
| TP-36AK1-L |
Plastic |
Per link |
Vertical conveyor chain |
36 |
1 |
8 |
60 |
0.5 |
| TP-36AK1-TMF-L |
Plastic |
Per link |
Vertical conveyor chain |
36 |
1 |
8 |
60 |
0.5 |
How to Order
Confirm top plate width, curve radius and required length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

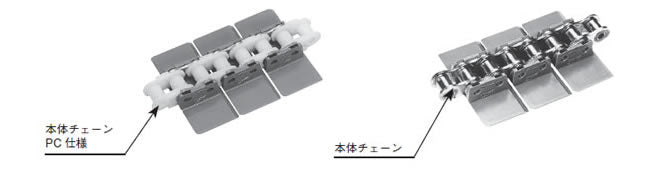

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
