Description
TSUBAKI TTPDH — Plastic Top Chain TTPDH Type (Straight Conveying), genuine TSUBAKI product.
Overview
The Tsubaki TTPDH type is a plastic top chain for straight conveying, designed for heavier loads or wider top plates. Flat plastic plates provide a stable surface for transporting cases, containers and packages. It is used in beverage, food and logistics conveyors. Low-friction material grades reduce drive power and wear on wear strips.
Key Features
- Straight conveying for heavier loads
- Wide flat top plates
- Lube-free plastic construction
- Material options for friction and wear
Specifications
| Part No. |
Material (Body) |
Type |
Pitch (mm) |
Links per Unit |
Top Plate (mm) |
Max. Allowable Tension (kN) |
| TTPDH1905-LBP-L |
Plastic |
Vertical conveyor chain |
38.1 |
80 |
190.5 |
1.67 |
| TTPDH1905-LFB-L |
Plastic |
Vertical conveyor chain |
38.1 |
80 |
190.5 |
1.67 |
| TTPDH2540-LBP-L |
Plastic |
Vertical conveyor chain |
38.1 |
80 |
254 |
1.67 |
| TTPDH2540-LFB-L |
Plastic |
Vertical conveyor chain |
38.1 |
80 |
254 |
1.67 |
How to Order
Specify top plate width, material and length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

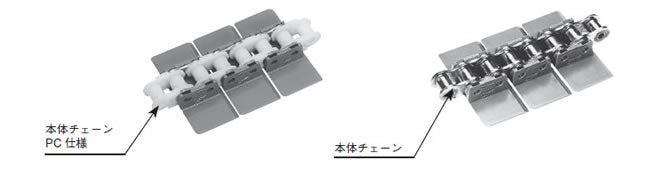

Product image is representative of the TSUBAKI series; appearance varies by size and model.
