Description
TSUBAKI TTPH826 — Plastic Top Chain TTPH Type (Straight Conveying), genuine TSUBAKI product.
Overview
The TSUBAKI TTPH Type plastic top chain is a straight-running conveyor chain that pairs plastic top plates with a design intended for heavier conveying duties than basic plastic chains. The low-friction plates carry bottles, cans and packages directly, and the chain runs quietly without rusting. It is used on beverage, food and packaging lines.
Key Features
- Plastic top plates for low friction and quiet running
- Designed for straight conveyor runs
- Corrosion resistant for wet environments
- Several material grades for different conditions
Specifications
| Part No. |
Material (Body) |
Type |
Type |
Pitch (mm) |
No. of Strands |
Top Plate (mm) |
Max. Allowable Tension (kN) |
| TTPH826-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826P-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826P-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826P-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
| TTPH826P-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
82.6 |
0.83 |
How to Order
Confirm the top plate width, material grade and length, and the matching sprocket. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

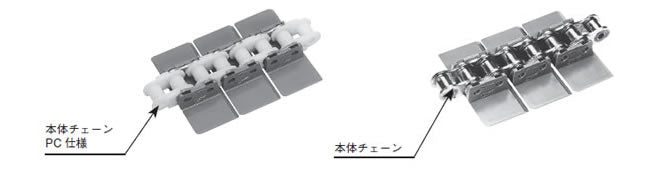

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
