Description
TSUBAKI TTUPH826-L — Plastic Top Chain TTUPH Type (Curved Conveying), genuine TSUBAKI product.
Overview
The Tsubaki TTUPH type is a side-flexing plastic top chain for curved conveying, letting one flat-top chain follow straight runs and horizontal bends without transfer points. Resin top plates carry containers directly, while the hinge design allows sideways flexing around corner tracks or curve guides. It is used on bottle, can and package conveyors in beverage, food and consumer goods plants.
Key Features
- Side-flexing hinge for horizontal curves
- Resin top plates for direct product carrying
- Low-friction surface supports accumulation
- Matching lock sprockets available
Specifications
| Part No. |
Material (Body) |
Type |
Type |
Pitch (mm) |
No. of Strands |
Inner Link Inner Width (mm) |
Top Plate (mm) |
Max. Allowable Tension (kN) |
| TTUPH826-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUPH826-LFB-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUPH826-LFG-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
| TTUPH826-LFW-L |
Plastic |
Per link |
Vertical conveyor chain |
38.1 |
1 |
17.4 |
82.6 |
1.08 |
How to Order
Specify top plate width, resin material, minimum curve radius and chain length. Please confirm the full part number and options against the TSUBAKI catalog; contact us if you need help identifying the right model.

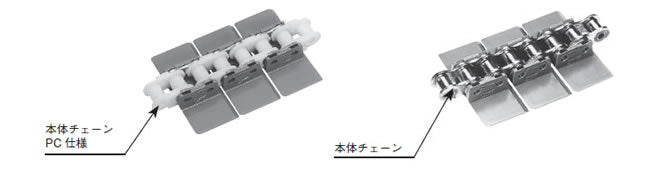

Product image is representative of the TSUBAKI series; appearance varies by size and model.
About TSUBAKI
Tsubakimoto Chain Co. (TSUBAKI) is a Japanese manufacturer and one of the world's leading makers of power transmission products, including roller and conveyor chains, sprockets, timing belts and pulleys, Power-Lock keyless locking devices, couplings, cam clutches, reducers and cable carriers.
Ordering & Shipping
- Genuine TSUBAKI product sourced through Korean distribution
- Ships worldwide from South Korea by FedEx International Priority Express
- Lead time varies by model; please inquire for exact delivery
- Import duties and taxes are payable by the recipient
- Bulk and trade pricing available on request
